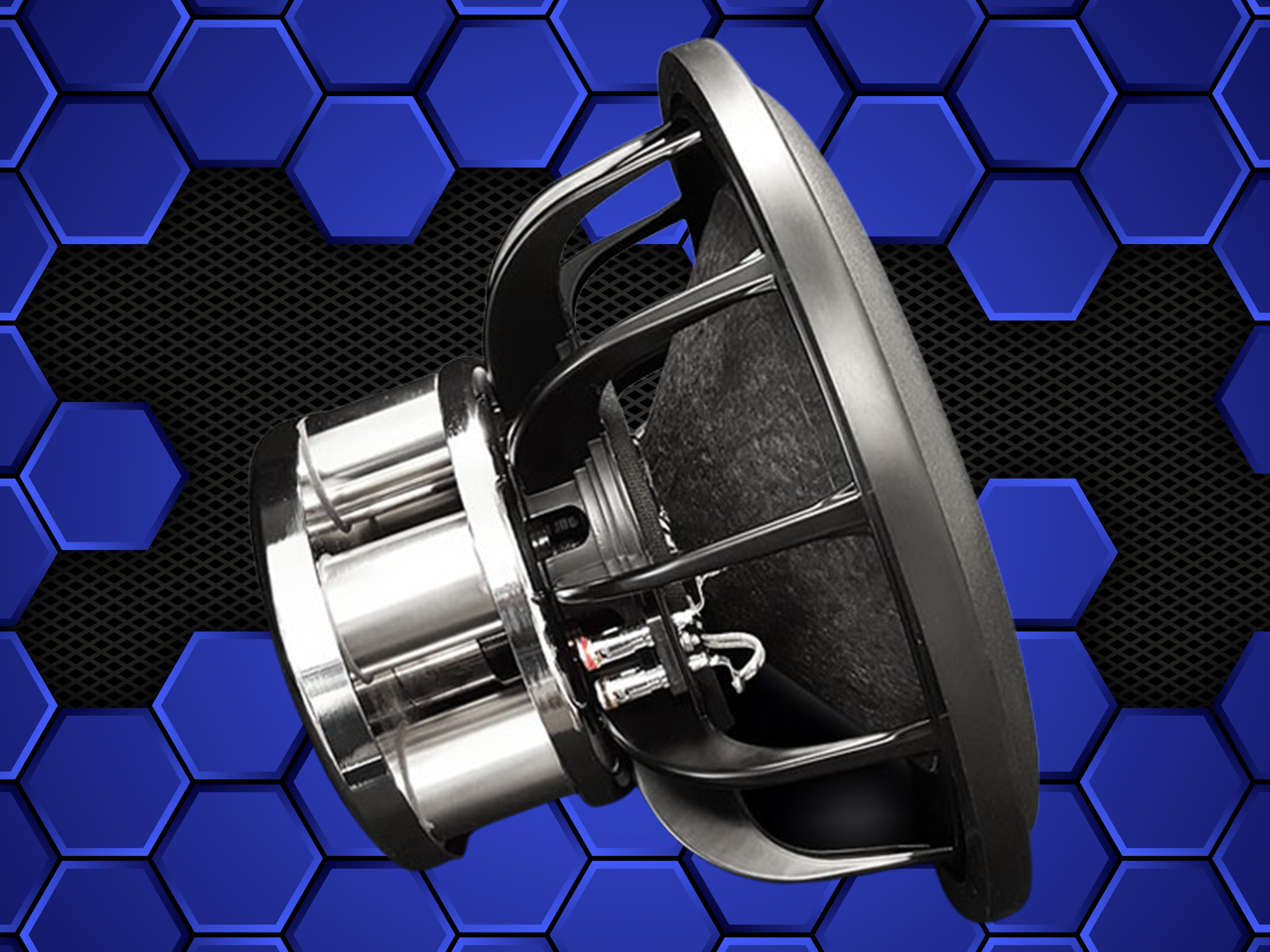

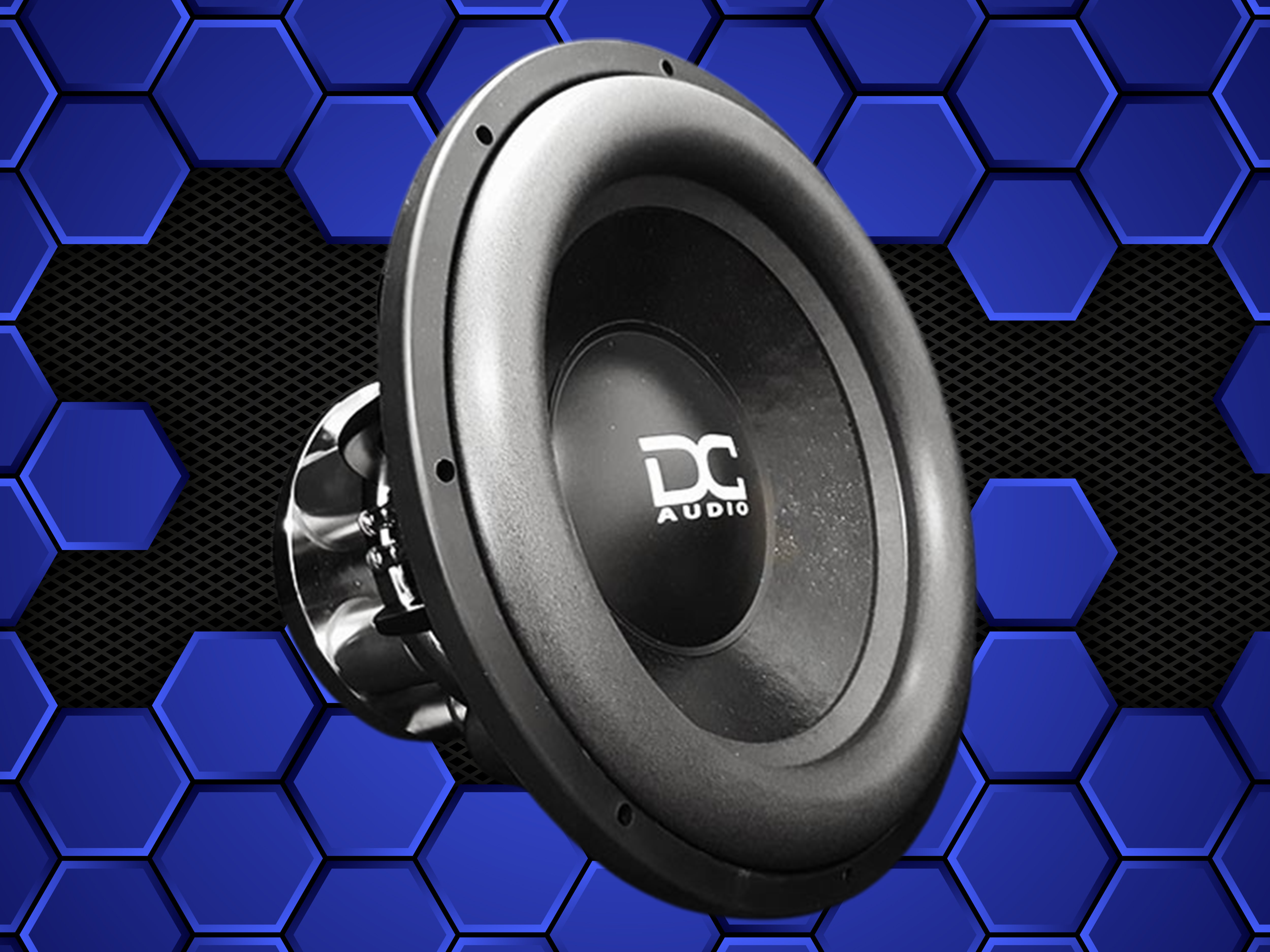

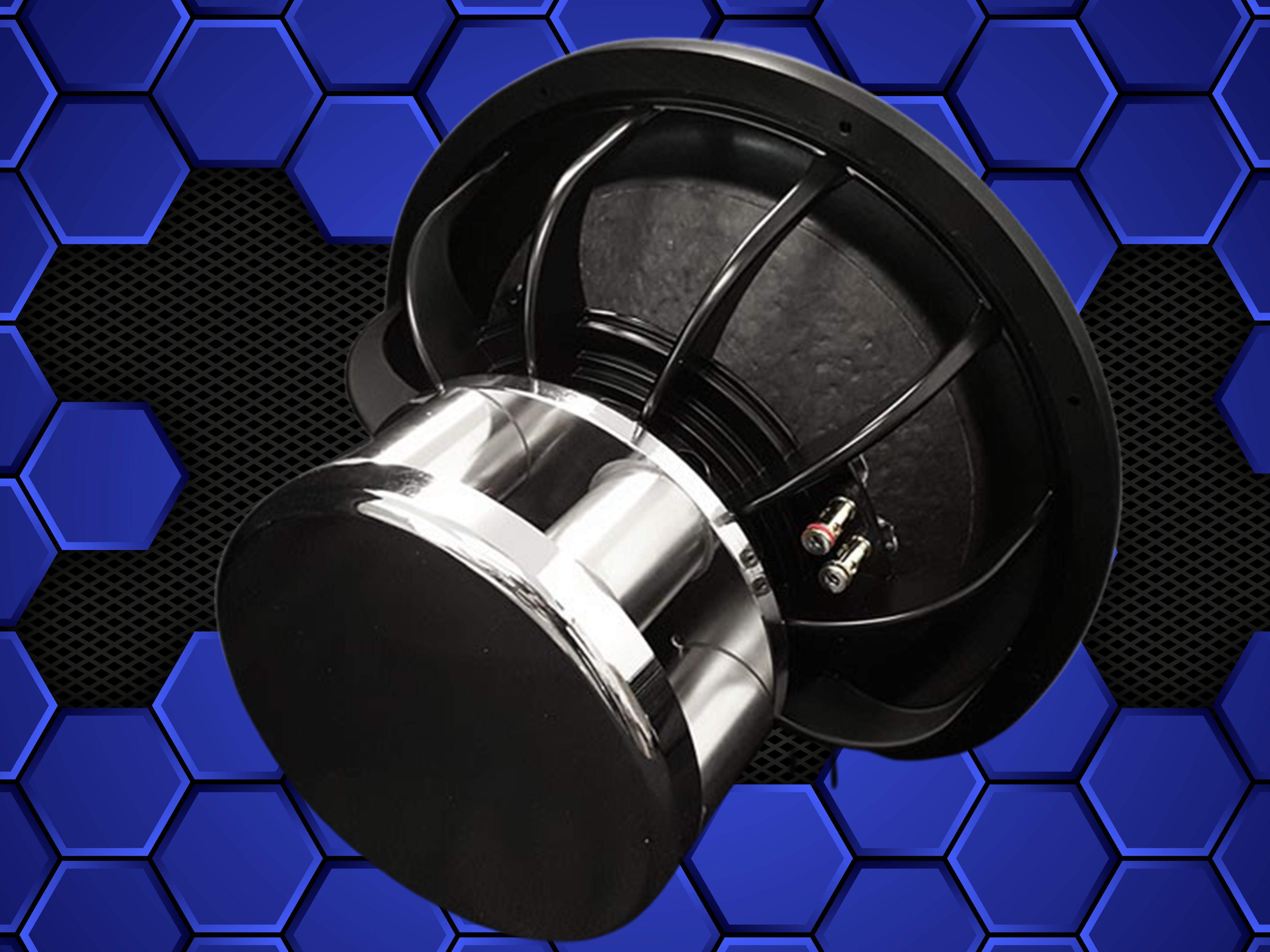

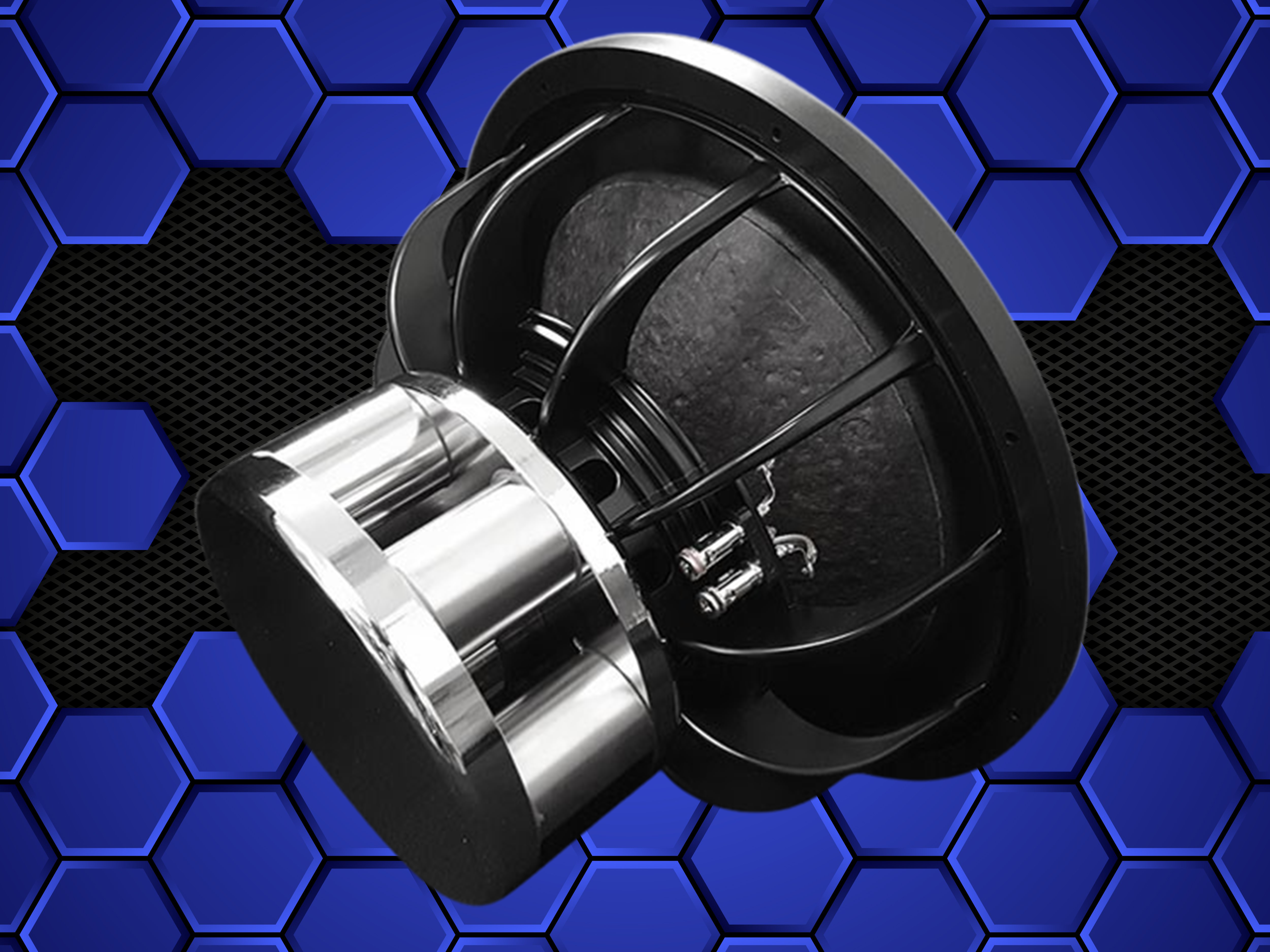

Neo 3.0 Subwoofer Line
2024 Cone Change : Now Comes Stock with TR Cone / Surround
2200 Watts RMS 4400 Watts Peak
Available in 15 and 18" Models
Tight and Standard Gap Models
Standard Gap for Music
Tight Gap for burps only
Subwoofer Description
The NEO 3.0 is a subwoofer built for SPL!! If you're looking for a SPL Championship proven subwoofer, here you go.
Custom Coil and Spider Configurations to get every tenth of a db out of it available.
Key Features
- Extremely rigid AR paper cone assembly
- Multilayered polymer foam surround
- Polypropylene dust cover with DC logo
- 8” OD semi cup progressive roll spiders
- Dual extra heavy duty interweaved tinsel lead wire
- Cast aluminum black frame
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- Chrome spring loaded push terminals
- 3" 8 layer hi-temp flat wound aluminum voice coil
T/S Parameters
| 15" | 18" | |
|---|---|---|
| Mounting Depth | 9" | 11" |
| Mounting Hole Diameter | 14" | 16.75" |
| Outside Driver Diameter | 15.7" | 18.5" |
| VC Diameter | 3.0" | 3.0" |
| Displacement | .23ft | .26ft |
| Power Handling rms/peak | 2200/4400 | 2200/4400 |
| Ohm Options | d.7/d1/d2/d4 | d.7/d1/d2/d4 |
| Sd | 791 cm | 1159 cm |
| Vas | L | L |
| Cms | Mm/n | Mm/n |
| Mms | g | g |
| Fs | Hz | Hz |
| Bl | N/A | N/A |
| Re | Ohm | Ohm |
| Le | mH | mH |
| Qms | ||
| Qes | ||
| Qts | ||
| Xmax | 23mm | 23mm |
| Ref SPL @1 watt | db | db |
| Suggest Sealed Box | ft | ft |
| Suggested Ported Box | 3.0 ft | 5.5 ft |
