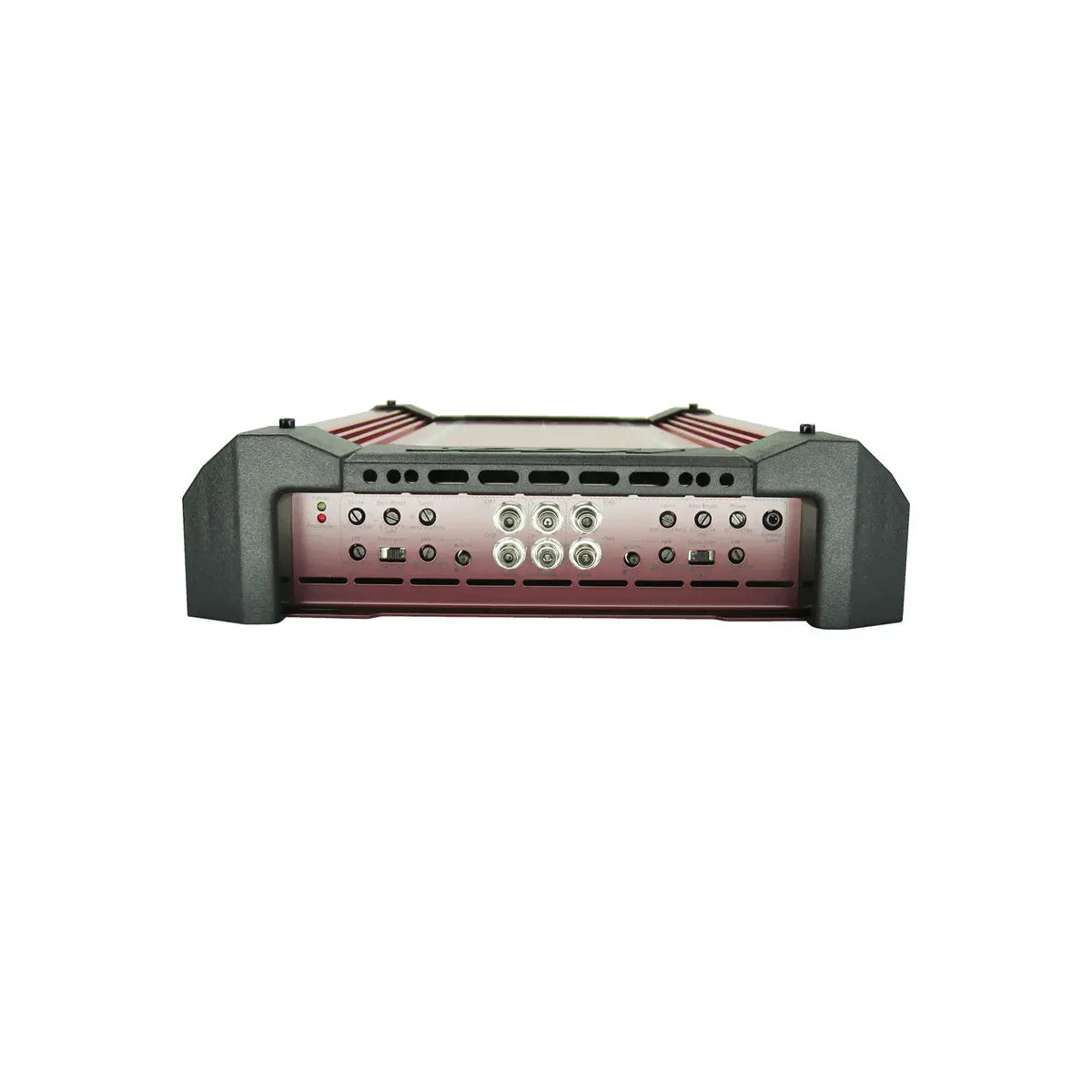

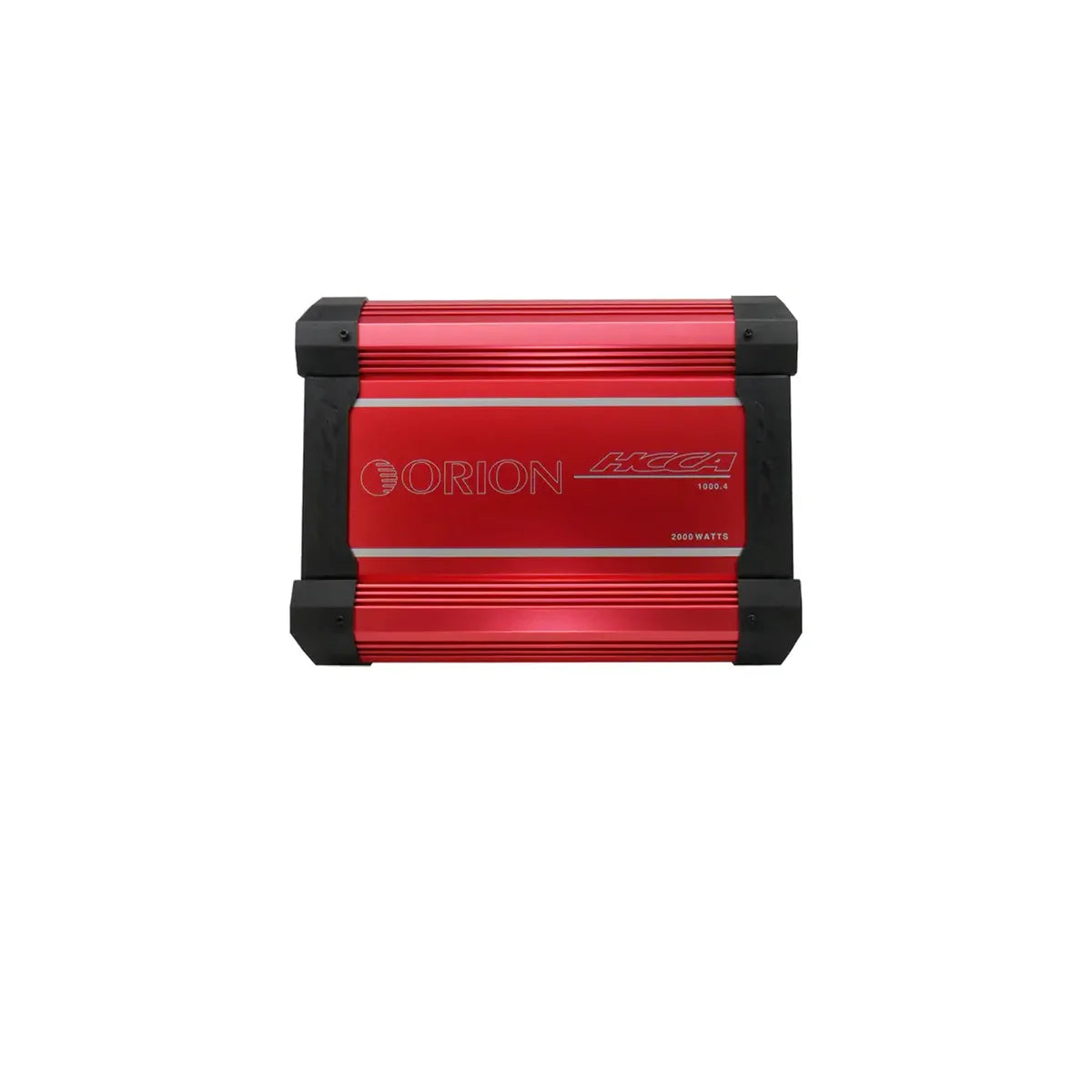

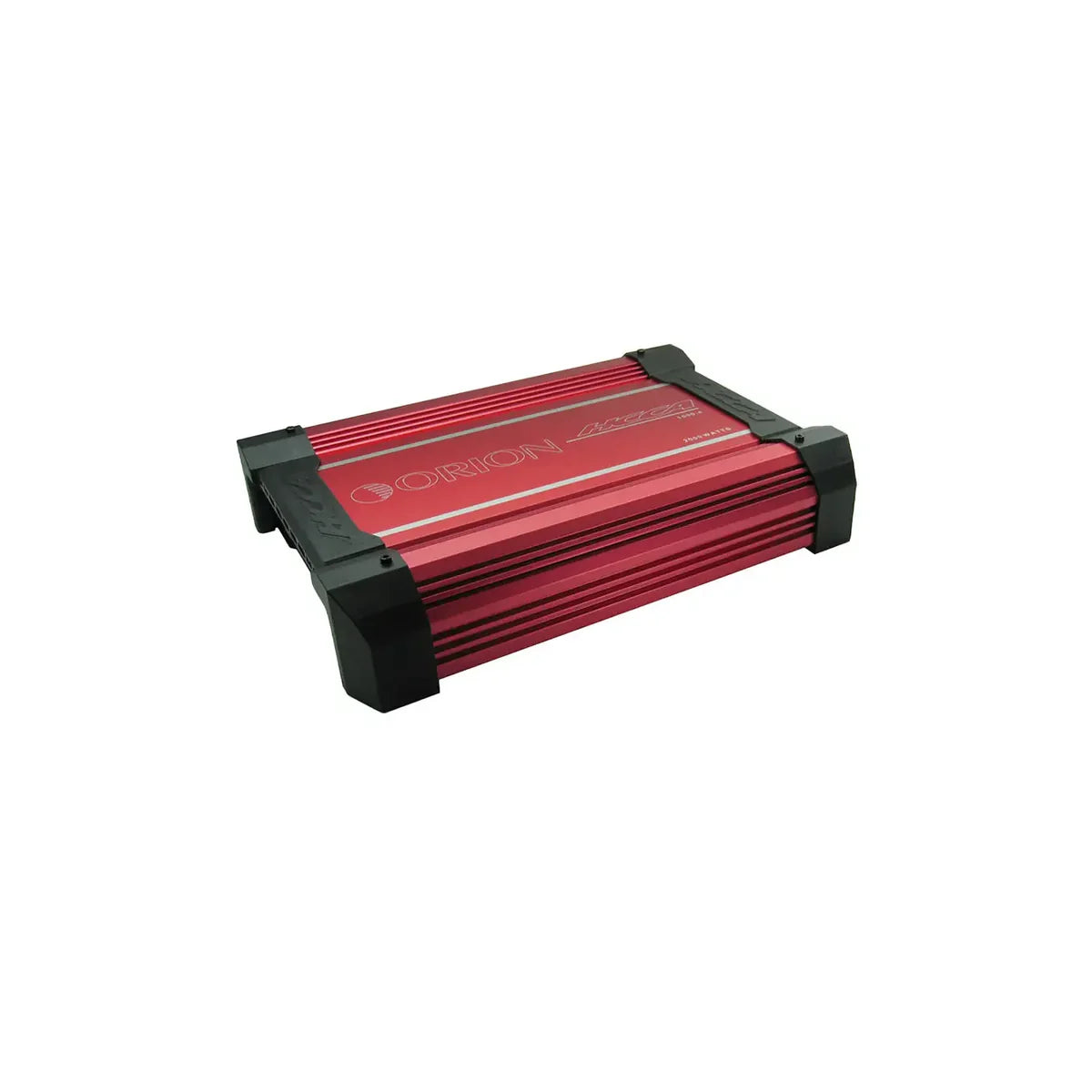

Orion HCCA1000.4 - 1000W RMS 4-Channel Class-AB Amplifier
Product details
The ORION HCCA1000.4 HCCA Series 1000W RMS 4-Channel Class-AB Amplifier encapsulates a perfect fusion of power and precision, designed to elevate your audio experience to extraordinary levels. Crafted for audiophiles who demand nothing short of exceptional performance, this amplifier delivers impeccable sound quality and dynamic range.
Uncompromising Sound Reproduction
Rediscover your music with unparalleled clarity and depth. From the softest harmonies to the most dynamic crescendos, every element of your audio is meticulously reproduced.
Power and Precision Redefined
Experience a harmonious blend of power and precision that elevates your sound system. The ORION HCCA1000.4 HCCA Series Amplifier seamlessly merges potent power with sonic accuracy, creating an audio journey that captivates the senses.
Elevate Your Drive
Elevate your driving experience with the ORION HCCA1000.4 HCCA Series 1000W RMS 4-Channel Class-AB Amplifier. Redefine your audio journey and embrace a level of sonic excellence that sets new benchmarks.
Features
Class-AB Amplification - Experience the harmonic blend of Class-AB amplification, combining the efficiency of Class B and the sound quality of Class A for a remarkable audio journey.
1000 Watts RMS - Immerse yourself in an auditory landscape with 1000 Watts RMS, delivering impactful and detailed sound performance.
Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring lasting durability.
Compact and Stylish Design - The amplifier's sleek design adds sophistication to your audio setup without compromising performance or aesthetics.
Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and unwavering performance.
- All MOSFET Power Supply
- Remote Gain Control
- Heavy Gauge Direct-Wire High Current Power and Speaker Terminals
- Electronic Crossover Network
- Bass Boost Circuitry
- Tri-Mode Capable
- High-Pass/Low-Pass Filter Control
- Power and Protection LED Indicators
- Soft Turn-on/Turn-off
- Balanced Input (CMRR)
- Fault and Protection Monitoring
- 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Ratings
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 150W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 250W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 500W

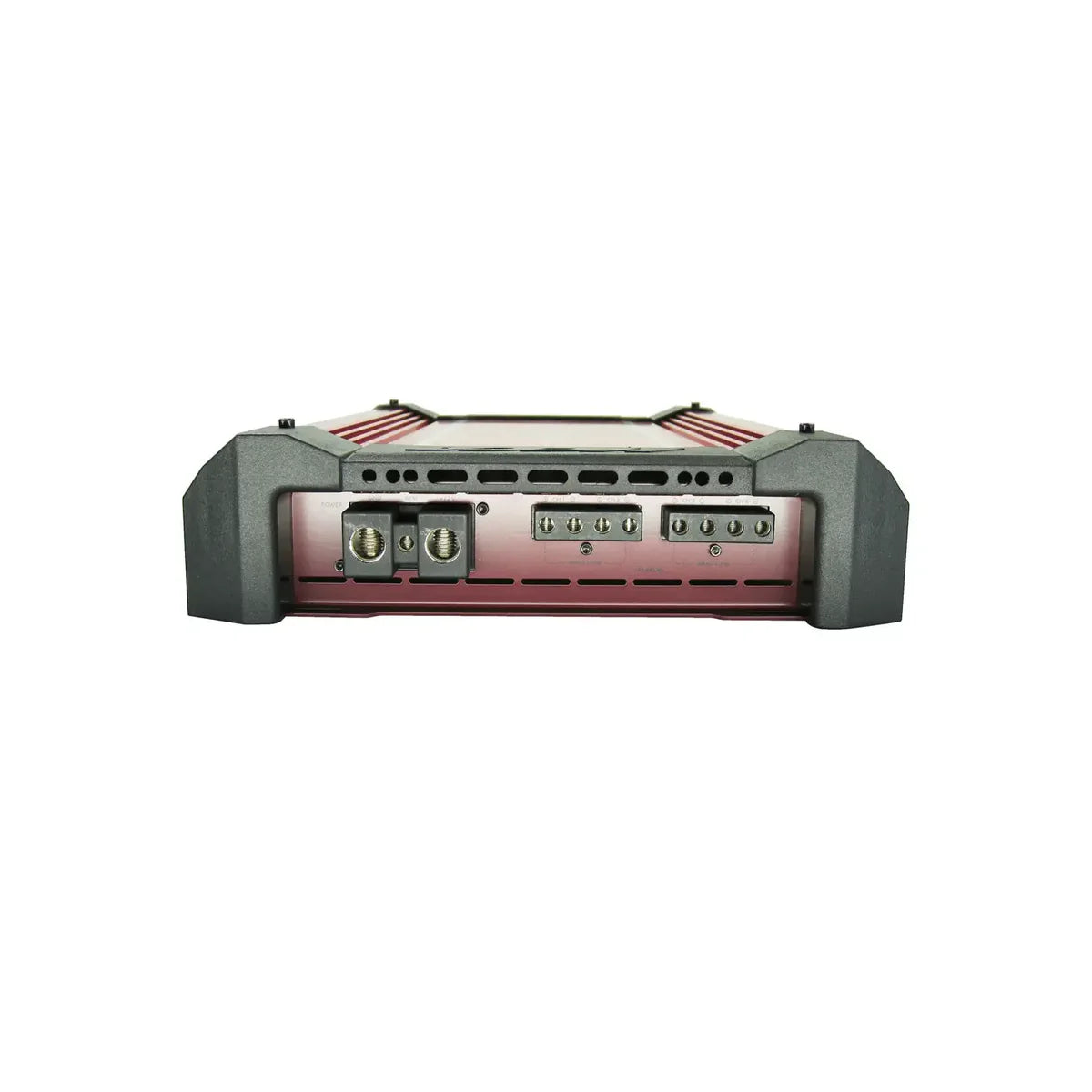

POWER TERMINAL MANAGEMENT
Positive Terminals: 1 x 0 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.
Specifications
- Frequency Response 10Hz to 35kHz +/- 1 dB
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
- Low Pass Crossover Continuously variable (40-300Hz)
- Phase shift control 0 to 180
- Bass Boost 0-18dB variable
- Distortion at Rated Power 0.005% THD+N
- Damping Factor > 100
- Input Sensitivity(RMS) 200mV to 6V
- Supply Voltage Range 9 to 16V
- Input Impedance 20K Ohms
- Amplifier Efficiency > 67% into 2 Ohms load at max. power
- SNR at rated output power and lowest impedance > 95dB
- Fuses: 80A recommended (not included)
- Dimensions (L x W x H): 15.75" x 11.89" x 3.15" (400x302x80mm)
