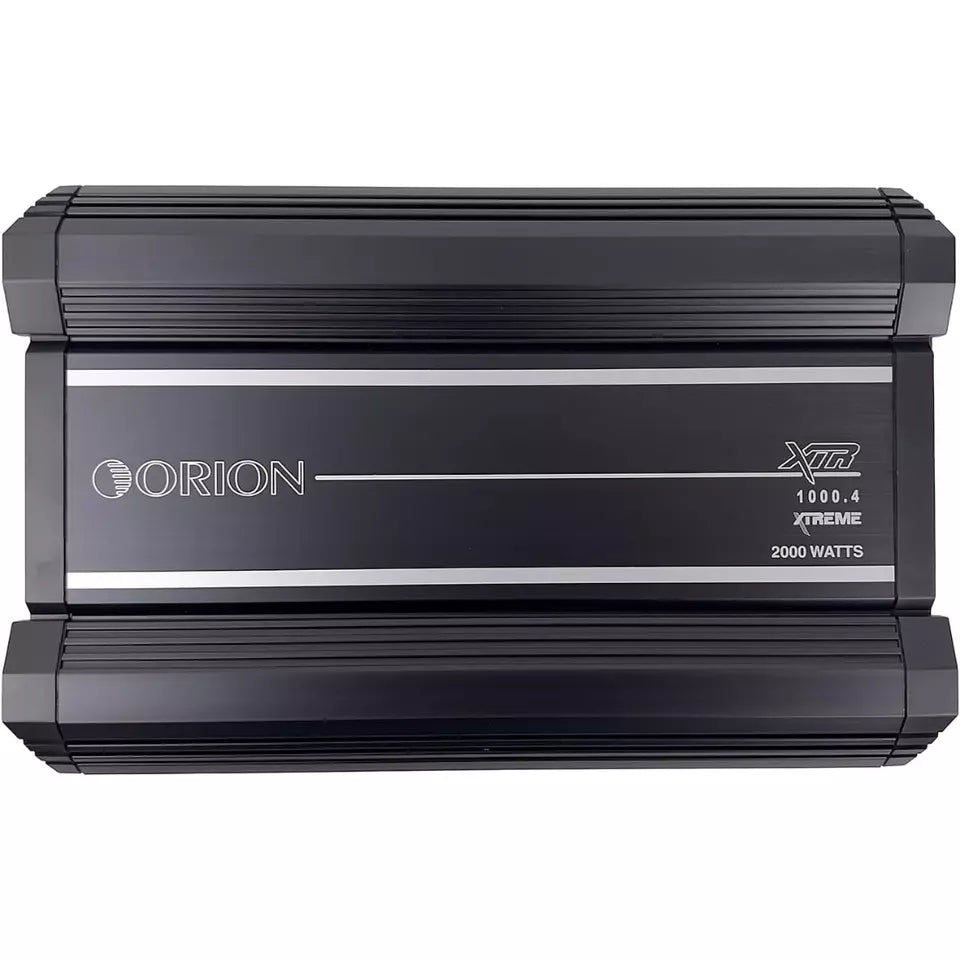

Orion XTR1000.4 XTR Series 4-Channel 1000W RMS Class-A/B Car Audio Amplifier
$389.95
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
- Reviews
Orion XTR1000.4 XTR Series 4-Channel 1000W RMS Class-A/B Car Audio Amplifier
Highlights:
- Class AB Amplification - Experience the robust fusion of efficiency and precision with Class AB amplification for powerful and accurate sound reproduction.
- 1000 Watts RMS - Immerse yourself in a world of robust audio excellence with 1000 Watts RMS, delivering commanding and clear sound performance.

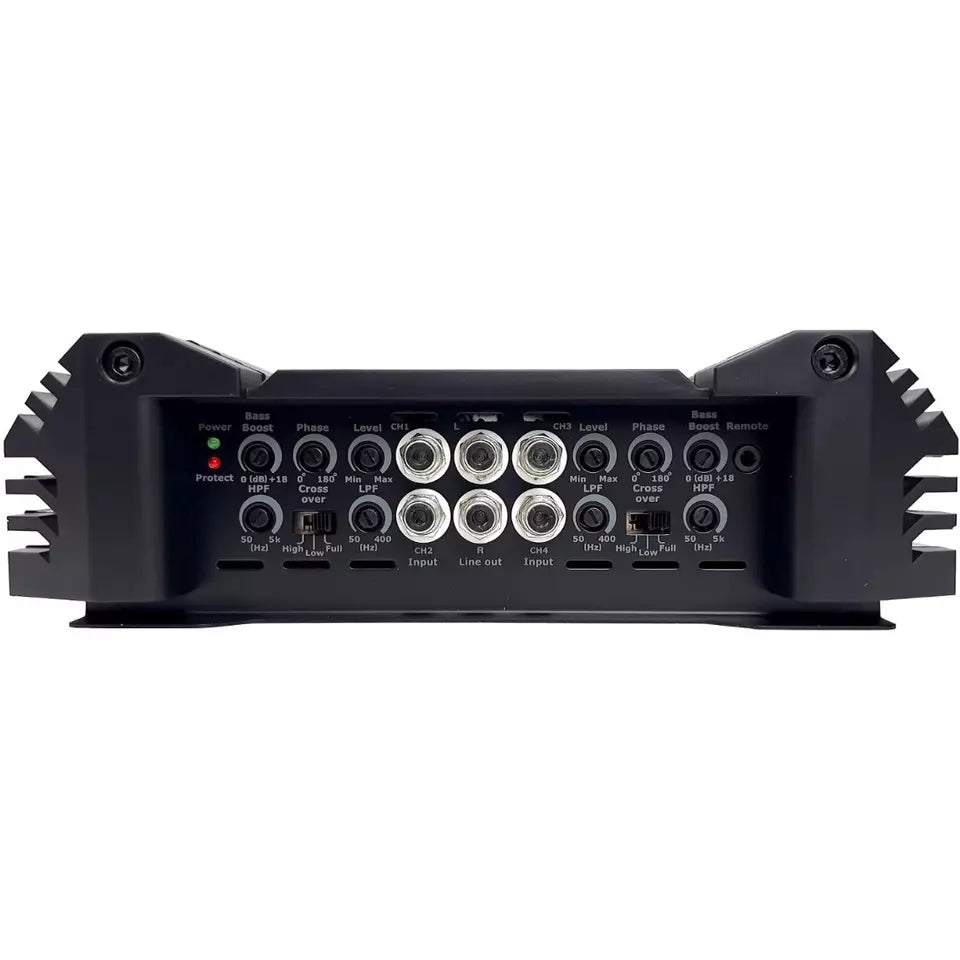

- Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
- Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
- Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
- Compact and Stylish Design - The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
- Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
Key Features:
- All MOSFET Power Supply & Output Stage

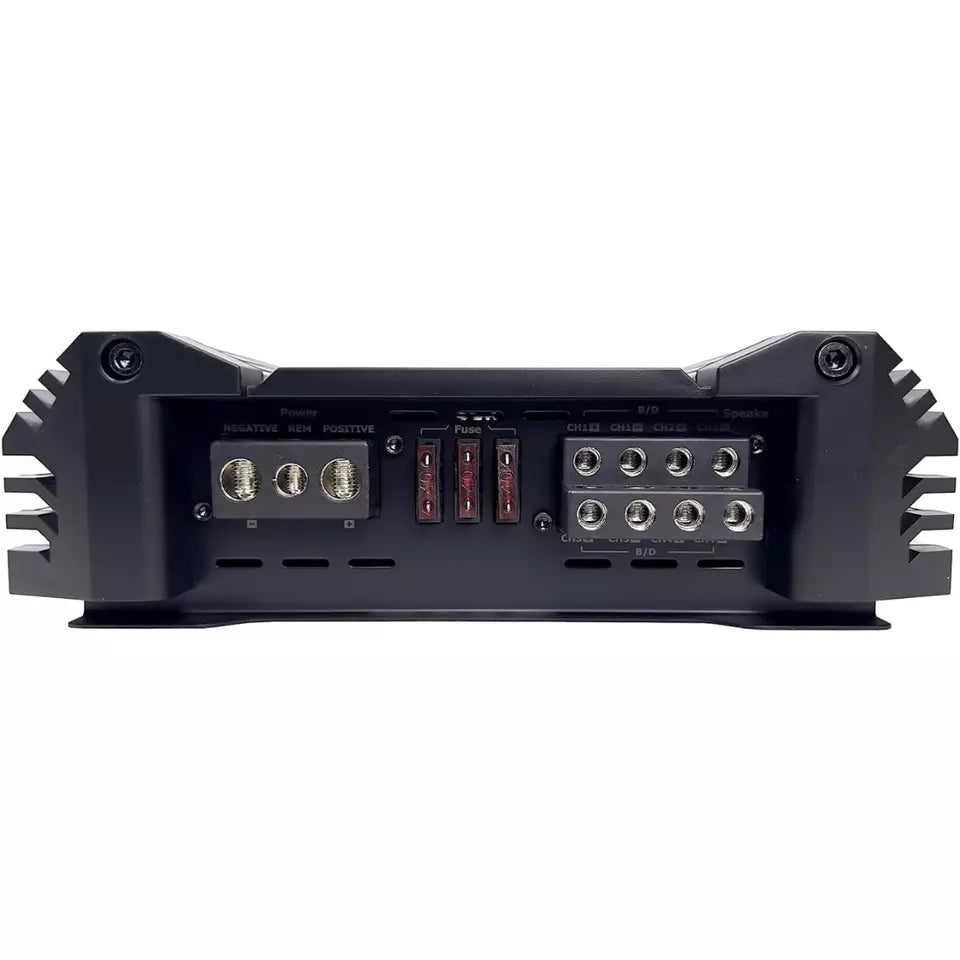

- Heavy Gauge / High Current Custom Power and Speaker Terminals
- 12dB Octave Low-Pass Filter

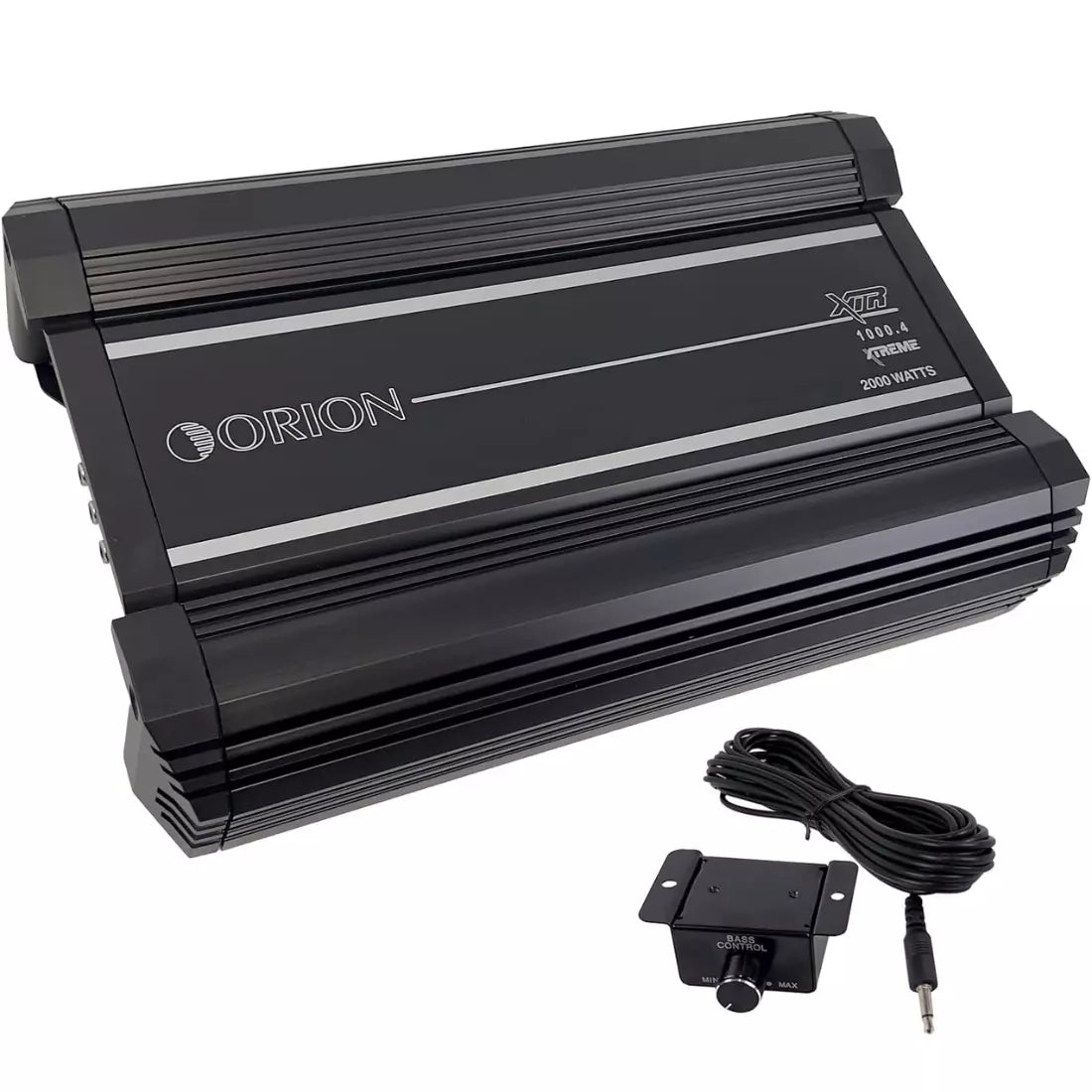

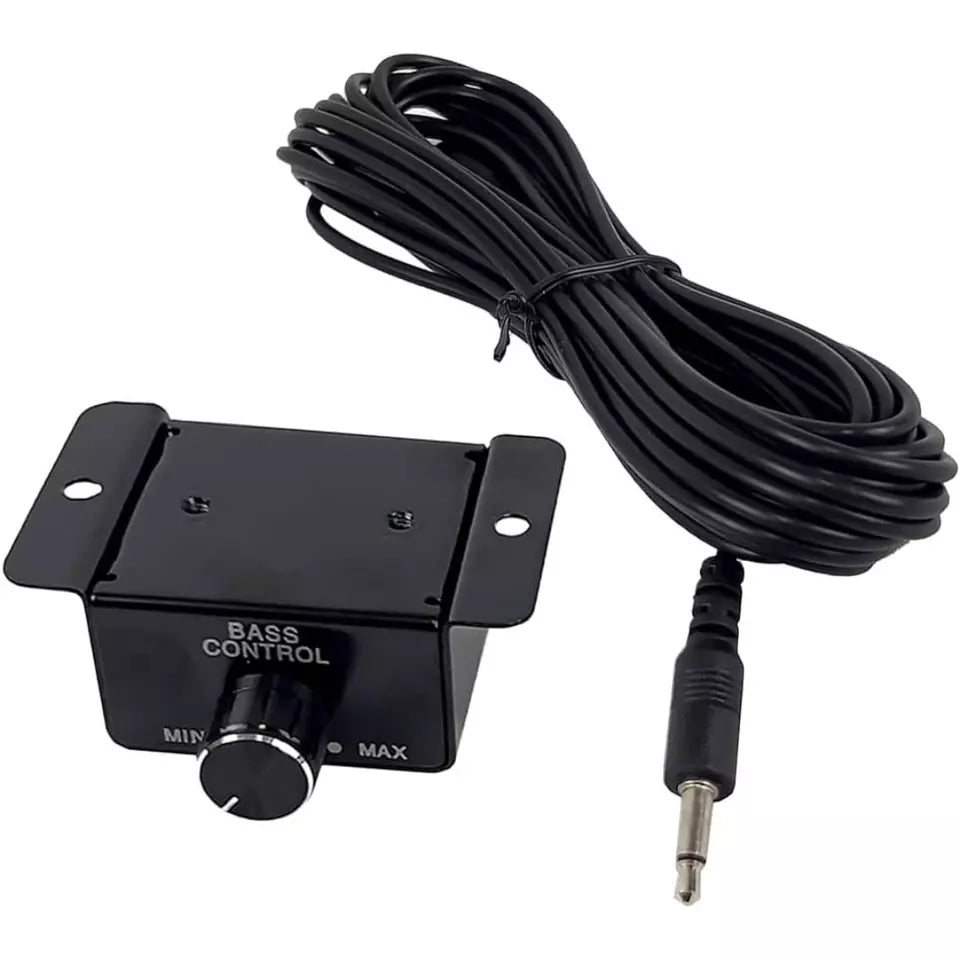

- Remote Gain Controller Included
- Electronic Crossover Network
- Bass Boost Circuit
- Power and Protection LED Indicators
- Soft Turn-on/Turn-off Turn-On Delay
- Fault and Protection Monitoring
- 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Ratings:
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 165W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 250W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 500W
Specifications:
- Frequency Response: 20Hz - 350kHz
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (50-5kHz)
- Low Pass Crossover Continuously variable (50-400Hz)
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >60%
- Damping Factor: 100dB
- Signal to Noise Ratio: >90dB
- T.H.D. & Noise: 0.5%
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 120A recommended (3 x 40A ATC Fuses)
- Dimensions (L x W x H): 14.17" x 9.25" x 2.75" (360x235x70mm)
