Orion XTR750.4 4-Channel 750 Watts RMS Power Class-A/B Car Audio Amplifier

$299.99
$299.95 In Stock Pre-Order Sold out
Notify when available

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

  • Description
  • Shipping and Refund
  • Reviews

Orion XTR750.4 4-Channel 750 Watts RMS Power Class-A/B Car Audio Amplifier

Key Features:

  • Class AB Amplification
  • 750 Watts RMS
  • All MOSFET Power Supply & Output Stage
  • Heavy Gauge / High Current Custom Power and Speaker Terminals
  • 12dB Octave Low-Pass Filter

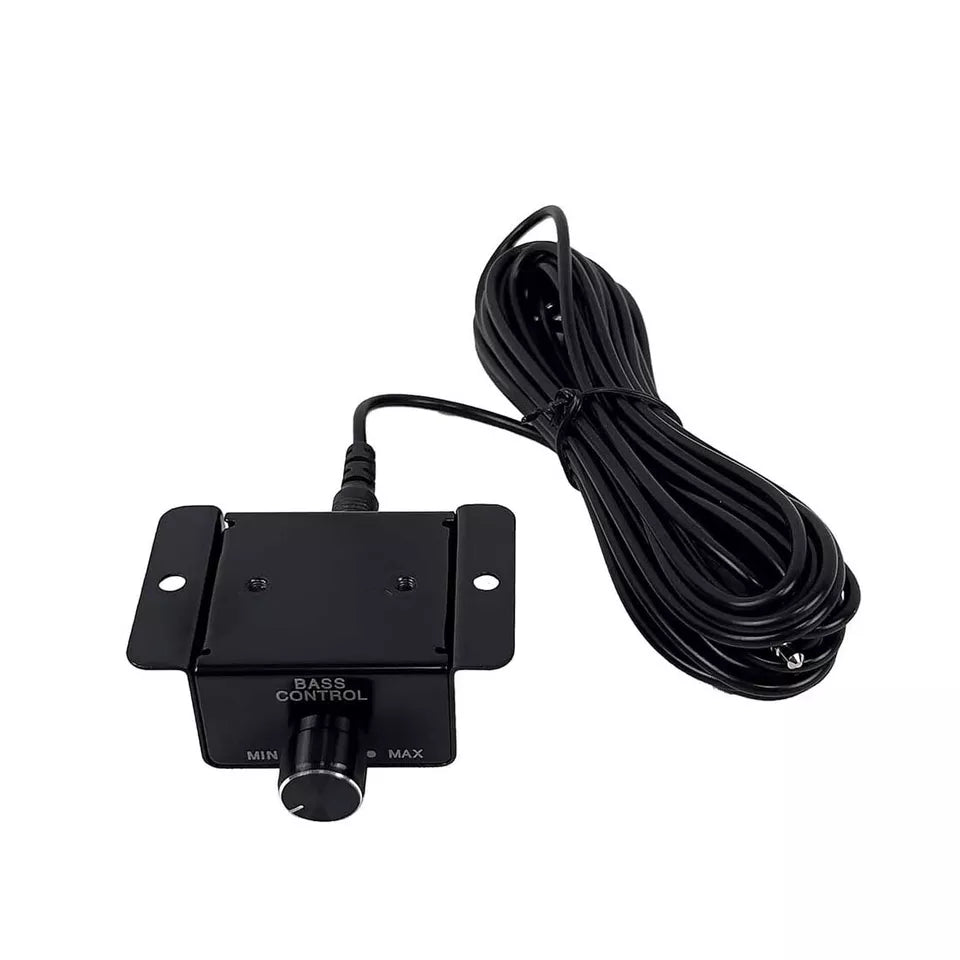

  • Remote Gain Controller Included
  • Electronic Crossover Network
  • Bass Boost Circuit
  • Power and Protection LED Indicators
  • Soft Turn-on/Turn-off Turn-On Delay
  • Fault and Protection Monitoring
  • 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Specifications:

  • RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 135W
  • RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 188W
  • RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 375W
  • Positive Terminals: 1 x 4 AWG.
  • Negative Terminals: 1 x 4 AWG.
  • Remote Turn-ON Signal: 10 AWG.
  • Speaker Output Terminals: 10 AWG.
  • Frequency Response: 20Hz - 35kHz
  • Linear Bandwidth 20Hz to 65kHz +/- 3 dB
  • High Pass Crossover Continuously variable (50-5kHz)
  • Low Pass Crossover Continuously variable (50-400Hz)
  • Supply Voltage: 9 - 16V
  • Amplifier Efficiency: >60%
  • Damping Factor: 100dB
  • Signal to Noise Ratio: >95dB
  • T.H.D. & Noise: 0.5%
  • Phase Shift: 0 - 180
  • Bass Boost: 0-18dB Variable
  • Variable Input Level Control: 0.2V - 6.0V
  • Fuses: 120A recommended (3 x 40A ATC Fuses)
  • Dimensions (L x W x H): 11.5" x 9.25" x 2.75" (292x235x70mm)
