2-Ohm 5 Channel Full Range 1000 Watts RMS Class AB / D Amplifier

2-Ohm 5 Channel Full Range 1000 Watts RMS Class AB / D Amplifier

• Powerful & Versatile: Delivers a total of 1000W RMS, combining Class AB clarity with Class D efficiency for a complete audio experience.
• 5-Channel All-in-One Solution: Powers your entire system—crisp mids and highs plus deep, impactful bass—without needing multiple amplifiers.
• Precision Tuning Controls: Built-in high-pass, low-pass, and subsonic filters let you fine-tune your sound exactly how you like it.
• Remote Gain Control Included: Easily adjust your subwoofer levels on the go for the perfect bass response.

DD Audio 2-Ohm 5 Channel Full Range 1000 Watts RMS Class AB / D Amplifier

This Listing Includes:

• (1) DD Audio 2-Ohm 5 Channel Full Range 1000 Watts RMS Class AB / D Amplifier

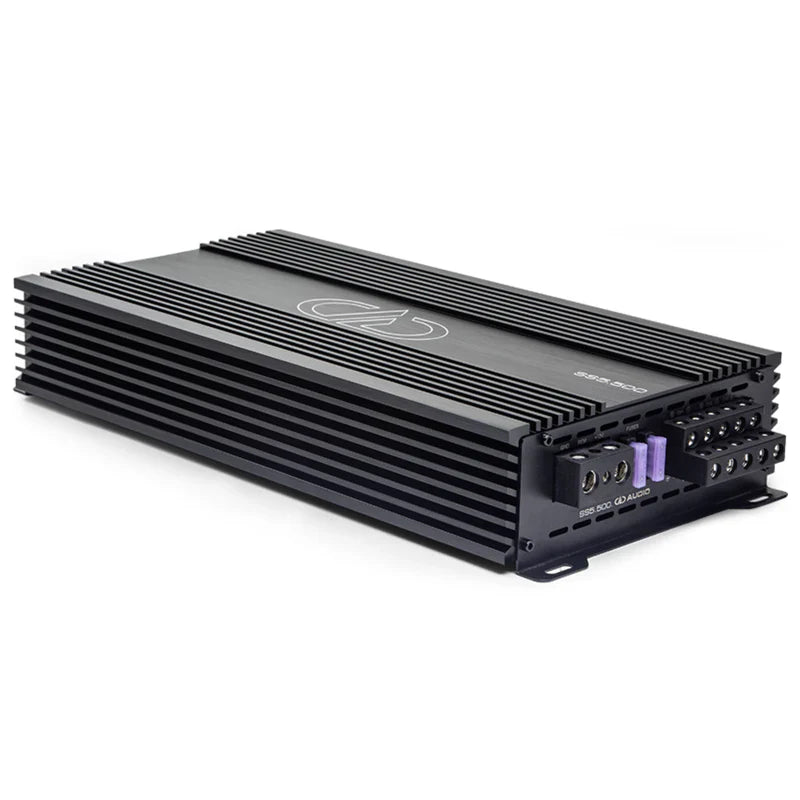

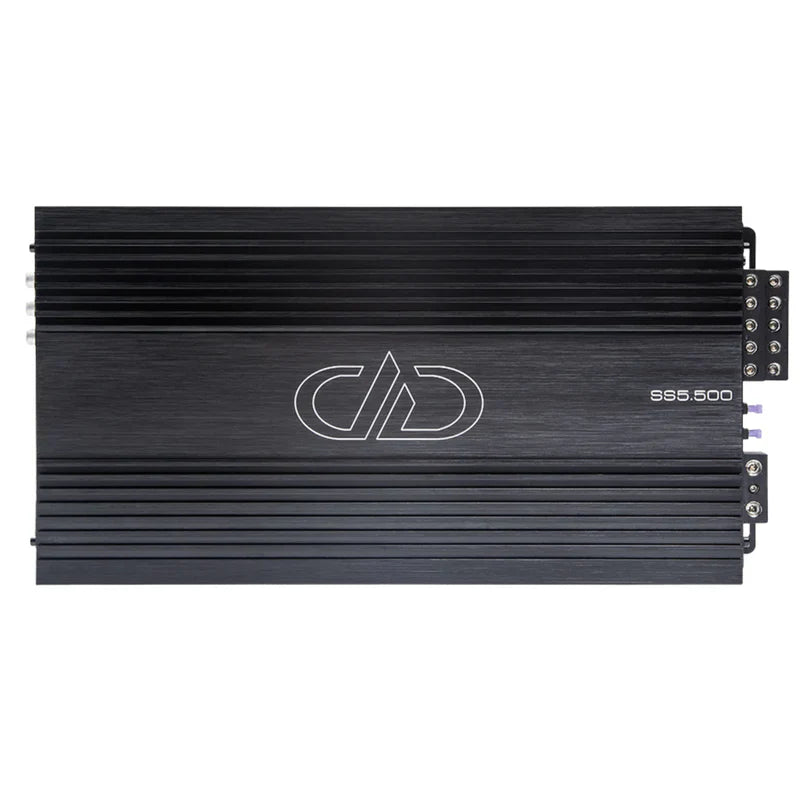

The DD Audio SS5.500 is a high-performance 5-channel amplifier designed to deliver exceptional sound quality with the perfect combination of Class AB and Class D circuit designs. The four-channel AB Class section provides precise and transparent mid and high-frequency response, offering warmth, clarity, and control. The Class D subwoofer mono channel delivers deep, powerful bass efficiently, maximizing your vehicle's stock electrical system. With premium components like Elna capacitors, high-spec transistors, and a high-speed International Rectifier-powered subwoofer section, this amplifier ensures a dynamic, high-fidelity listening experience.

Key Features:

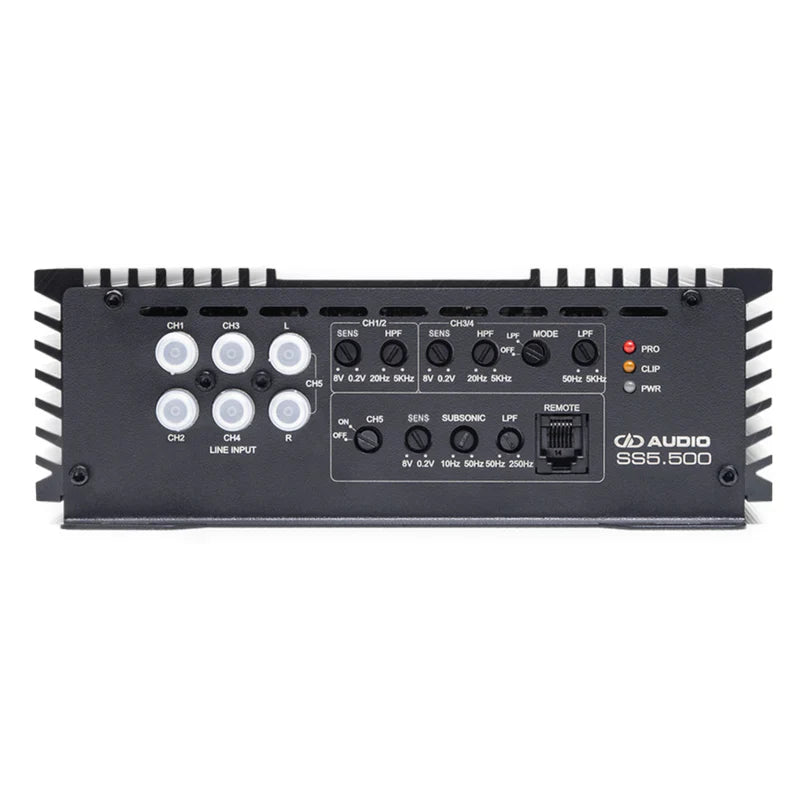

• 12dB/Oct High Pass/Low Pass Crossovers
• Dual Toroidal Power Supply for stable and efficient performance
• Heavyweight DD Aluminum Chassis for durability

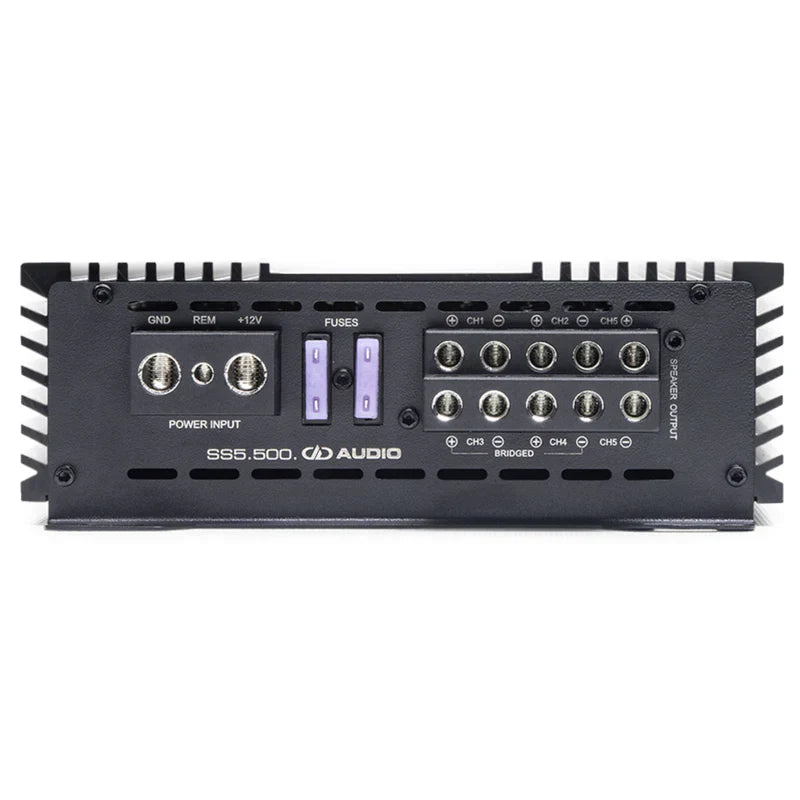

• Set Screw Power and Speaker Terminals for secure connections

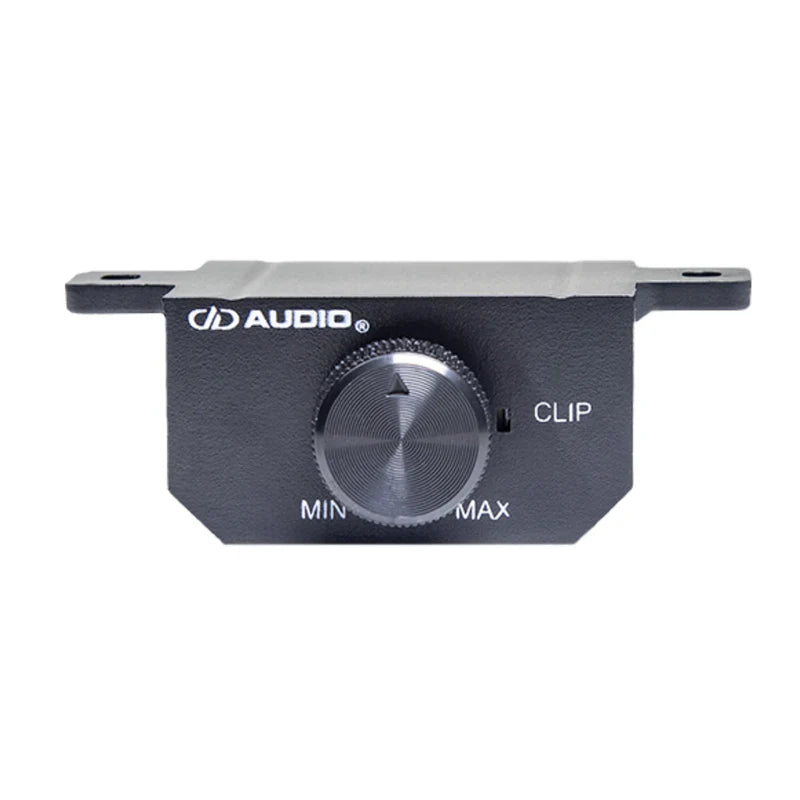

• Remote Gain Control for on-the-fly adjustments
• 0 AWG Power Terminals for maximum power delivery

Power Output:

• 80W x 4 @ 4 Ohms
• 120W x 4 @ 2 Ohms
• 500W x 1 @ 1 Ohm (Sub Channel)

Specifications:

• Operating Voltage: 9V - 16V
• Test Voltage: 14.4V
• Input Channels: 6
• Output Channels: 5
• Max Current Draw: 100A
• RCA Input Voltage Sensitivity: 8V - 0.2V
• High-Level Input Voltage Sensitivity: 20V - 1.1V
• Signal-to-Noise Ratio: >95dB
• Damping Factor: >100
• Total Harmonic Distortion (THD): <1.0 Percent
• Bass Boost: 12dB
• Frequency Response: 20Hz - 20kHz
• High Pass Filter: 20Hz - 5kHz
• Subsonic Filter: 10Hz - 50Hz
• Low-Pass Filter: 50Hz - 5kHz
• Remote Subwoofer Control: Yes (Included)
• Power Wire Gauge: 4 AWG
• Speaker Wire Gauge: 12 AWG
• Dimensions: 13.4" x 7.3" x 2.4" (340mm x 185mm x 60mm)
• Shipping Weight: 5 lbs
