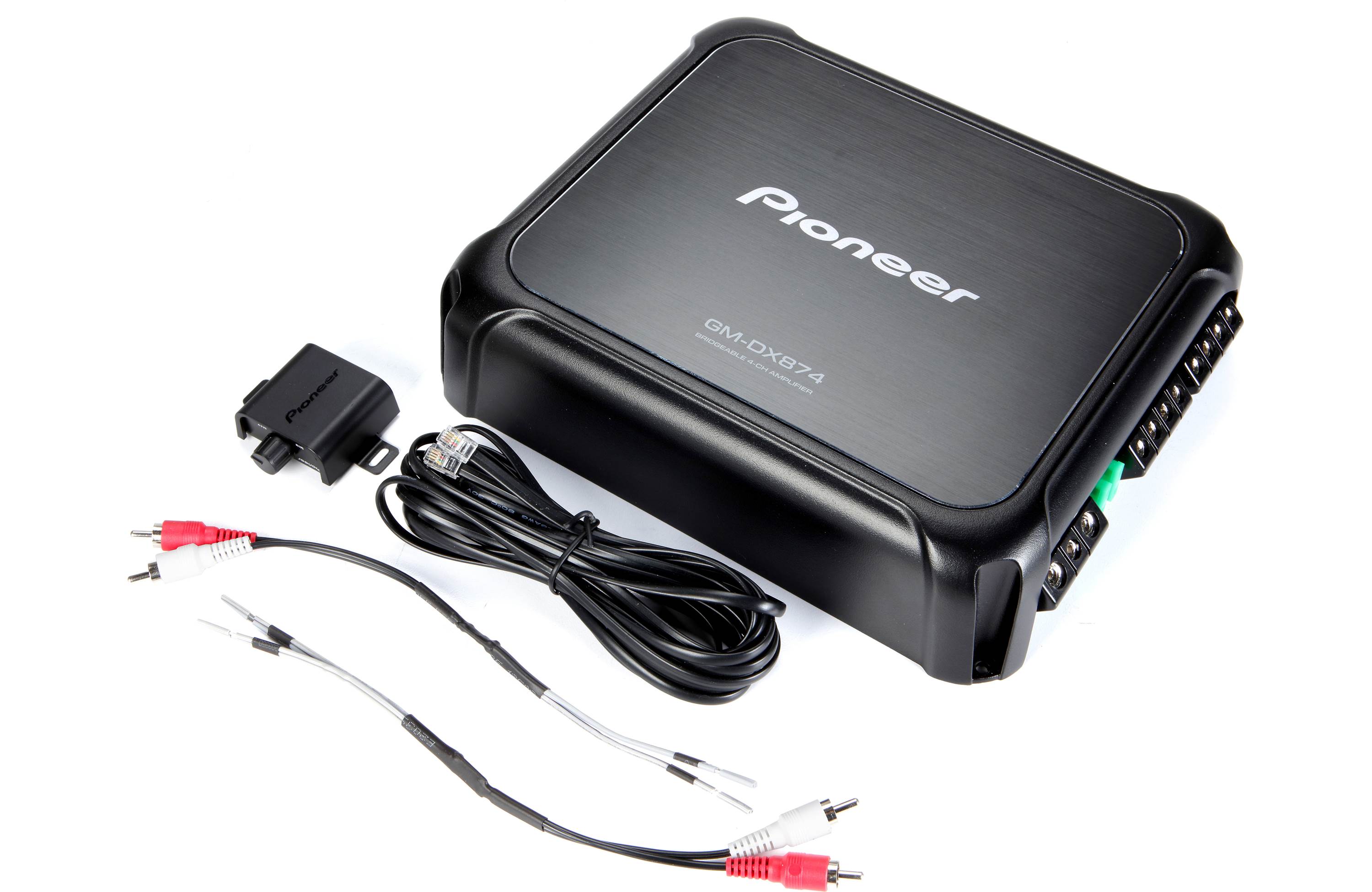

Pioneer GM-DX874 4-channel car amplifier — 100 watts RMS x 4

Product details

Cool power

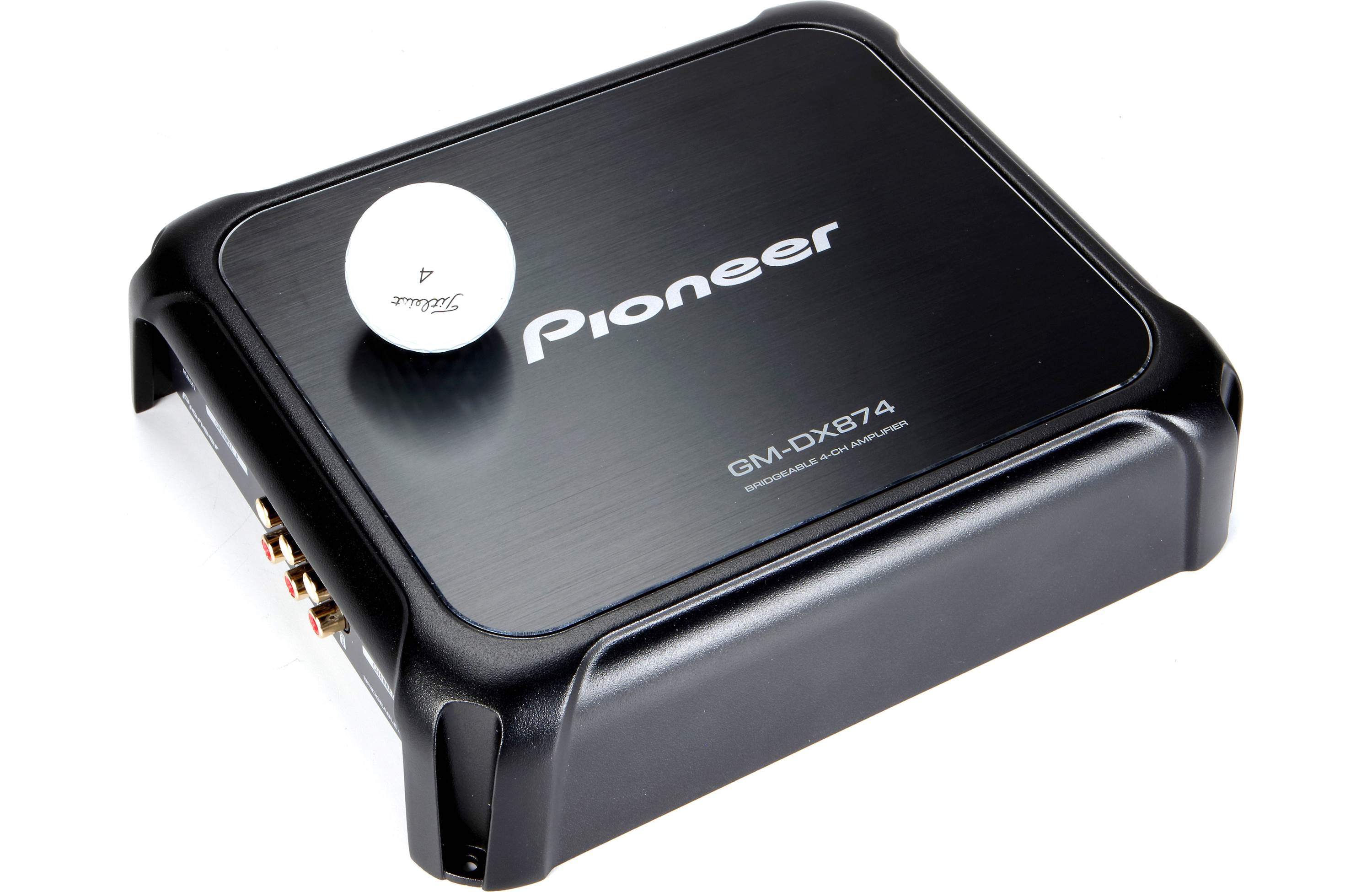

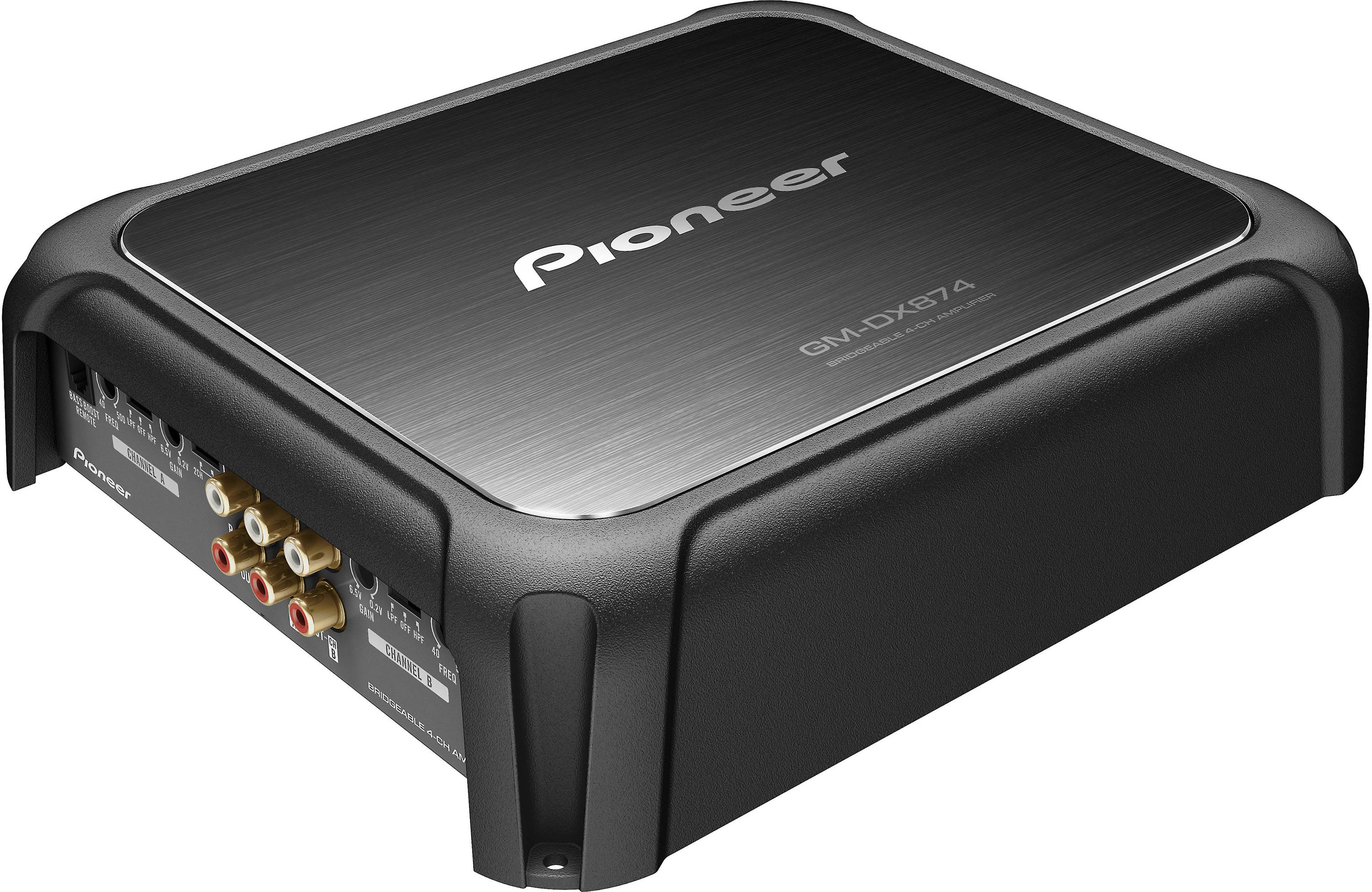

Pioneer's handsome GM-DX874 four-channel amplifier will deliver 100 watts RMS to each of your front and rear speakers, for powerful music that'll make every ride a pleasure. Highly efficient Class D technology keeps this powerful amp running as cool as it looks, and allows for a compact chassis that fits in a lot of out-of-the-way spaces. The frequency response of this amplifier stretches up to 50,000 Hz, so it'll support crystal-clear, Hi-Res playback. Pioneer uses high-grade electronic parts and gold-plated RCA connections to ensure maximum performance.

Convertible

If you're building a big system in stages, you can use this versatile amp at first to drive a pair of speakers with the front two channels while bridging the rear channels together to power a subwoofer with up to 300 watts RMS. Later on, you can get a separate amplifier for your sub, and switch this amp over to run all four of your full-range speakers.

Connections and tuning for all occasions

Speaker-level inputs allow you to install this amp in a factory system with no RCA connections — the amplifier switches its input mode automatically when it detects the high-level signal, eliminating the need to run a turn-on lead to your receiver or fuse box. Built-in high- and low-pass filters let you adjust the sound for your vehicle's interior, whether you're driving speakers or subs.

Product highlights:

• 4-channel car amplifier
  • 100 watts RMS x 4 at 4 ohms (150 watts RMS x 4 at 2 ohms)
  • 125 watts RMS x 4 at 1 ohm
  • 300 watts RMS x 2 bridged at 4 ohms (250 watts RMS x 2 bridged at 2 ohms)
• CTA-2006 compliant
• full-range Class D amp technology
• frequency response: 10-50,000 Hz (Hi-Res capable)

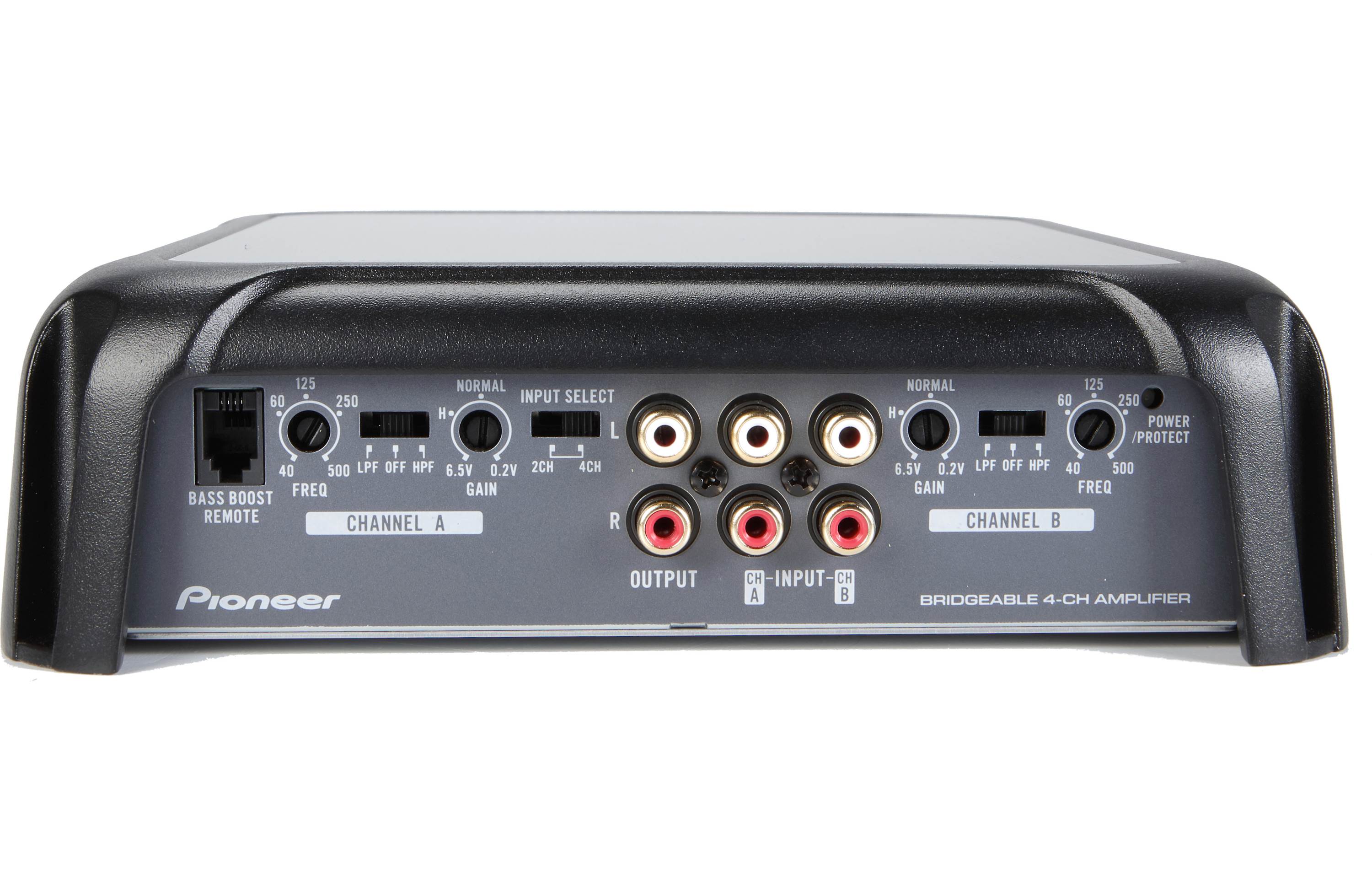

• variable high- and low-pass filters (40-500 Hz, 12 dB per octave)

More Features:

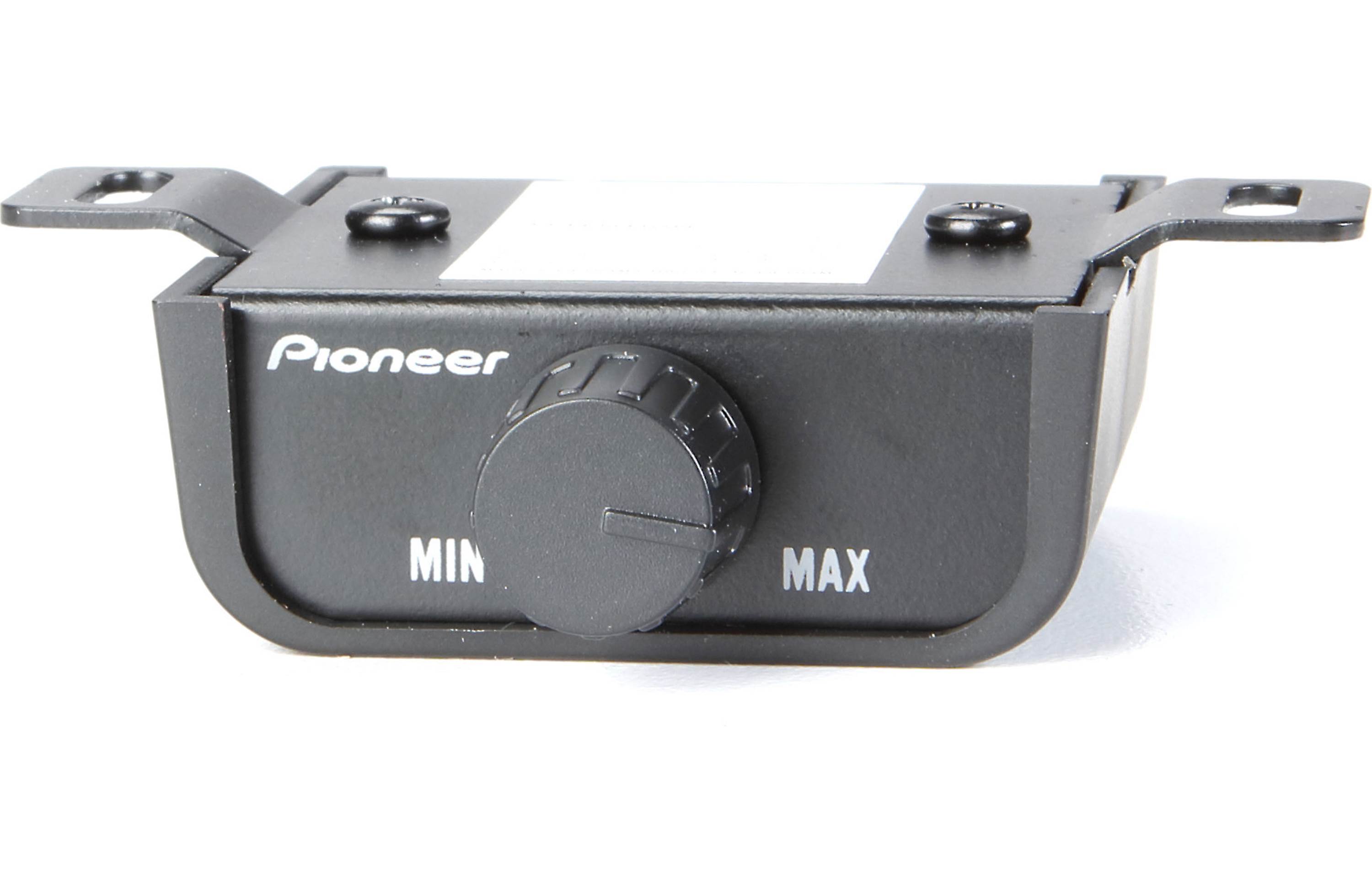

• wired remote controls variable bass boost (0-18 dB at 50 Hz)
• preamp inputs and outputs
  • gold-plated RCA connections
• speaker-level inputs via supplied RCA-type adapters
  • signal-sensing turn-on with speaker-level inputs
• wiring and hardware not included with amplifier
  • 4-gauge power and ground leads recommended

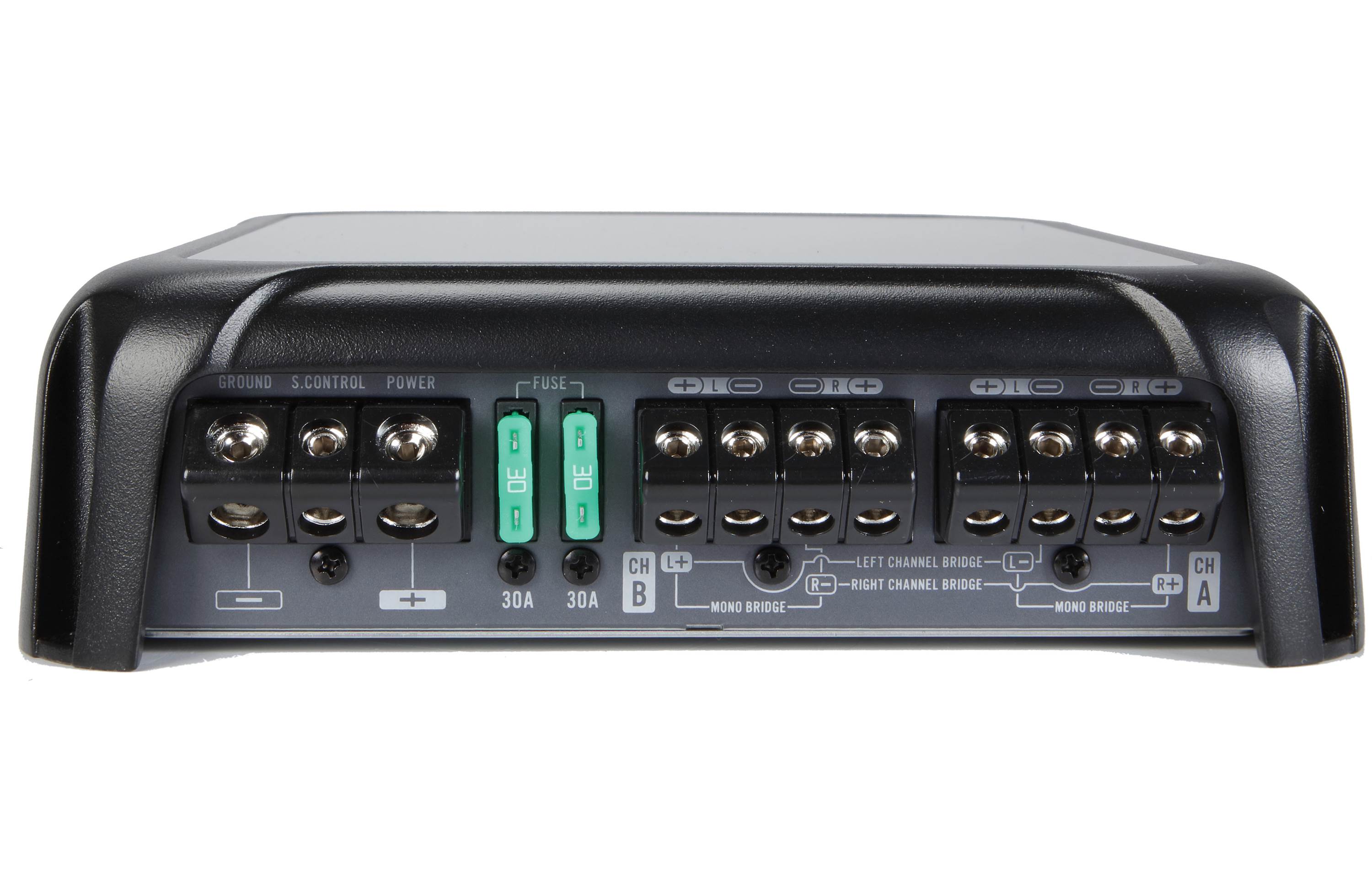

• fuse rating: 30A x 2
• dimensions: 10-3/8"W x 2-3/8"H x 7-7/8"D
