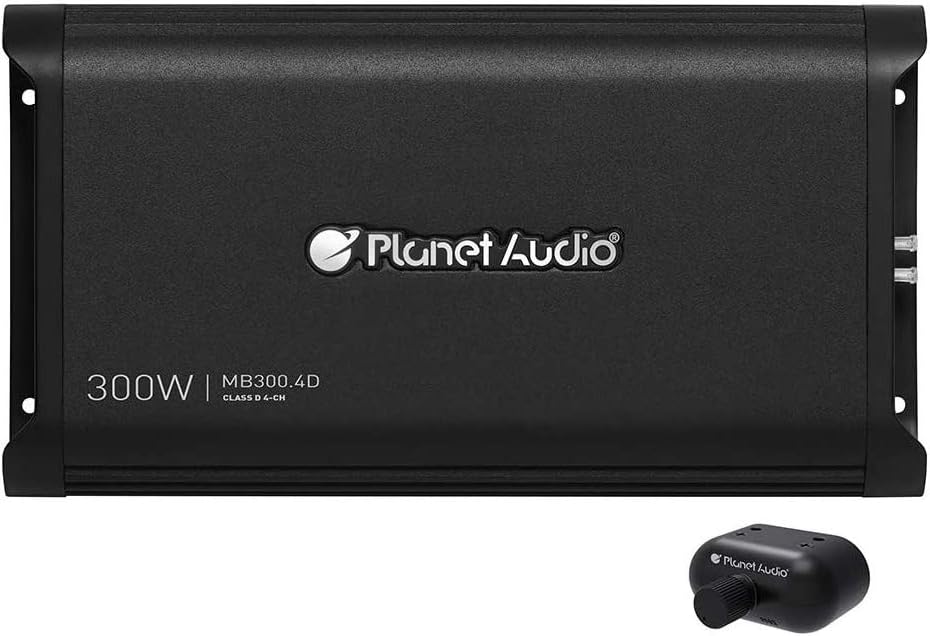

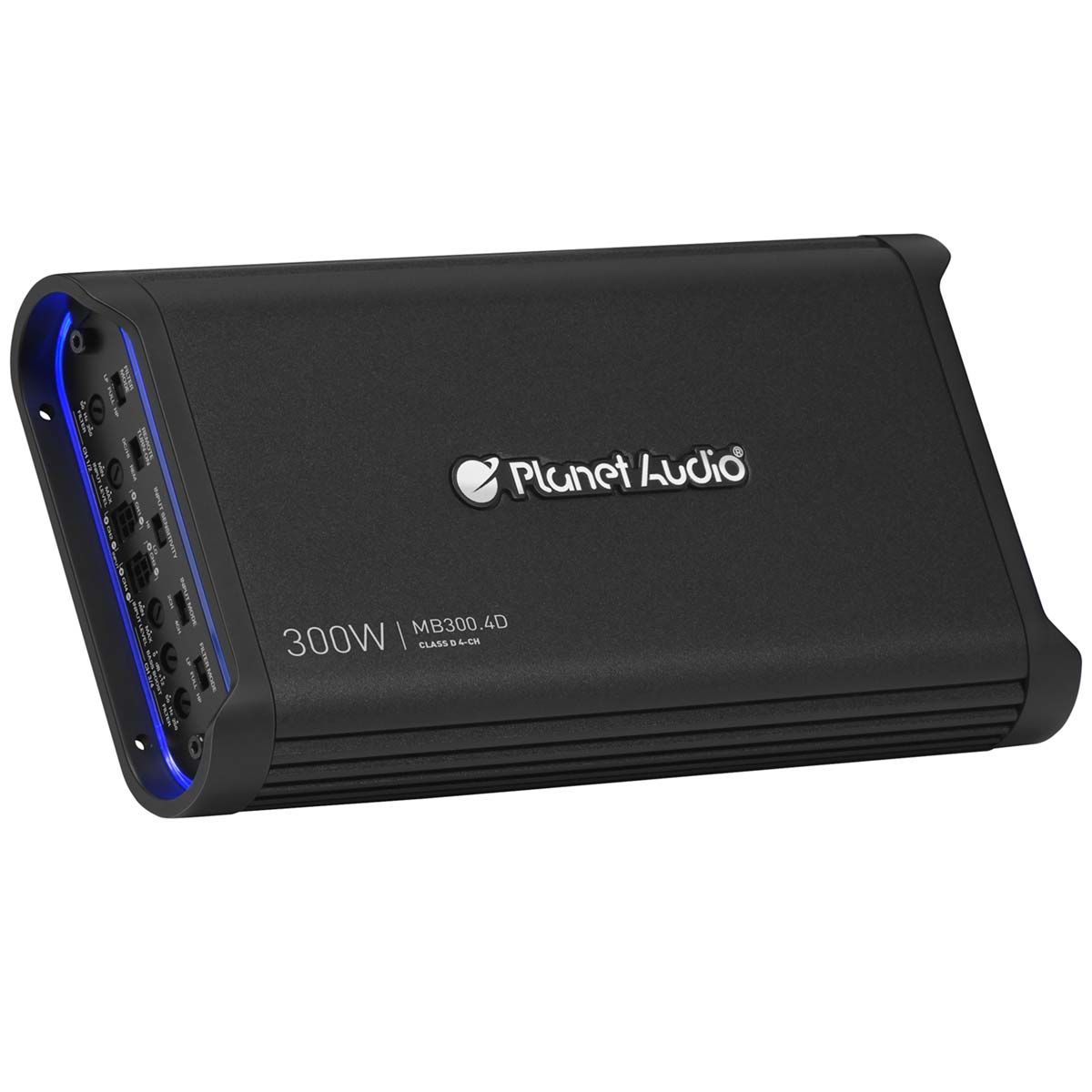

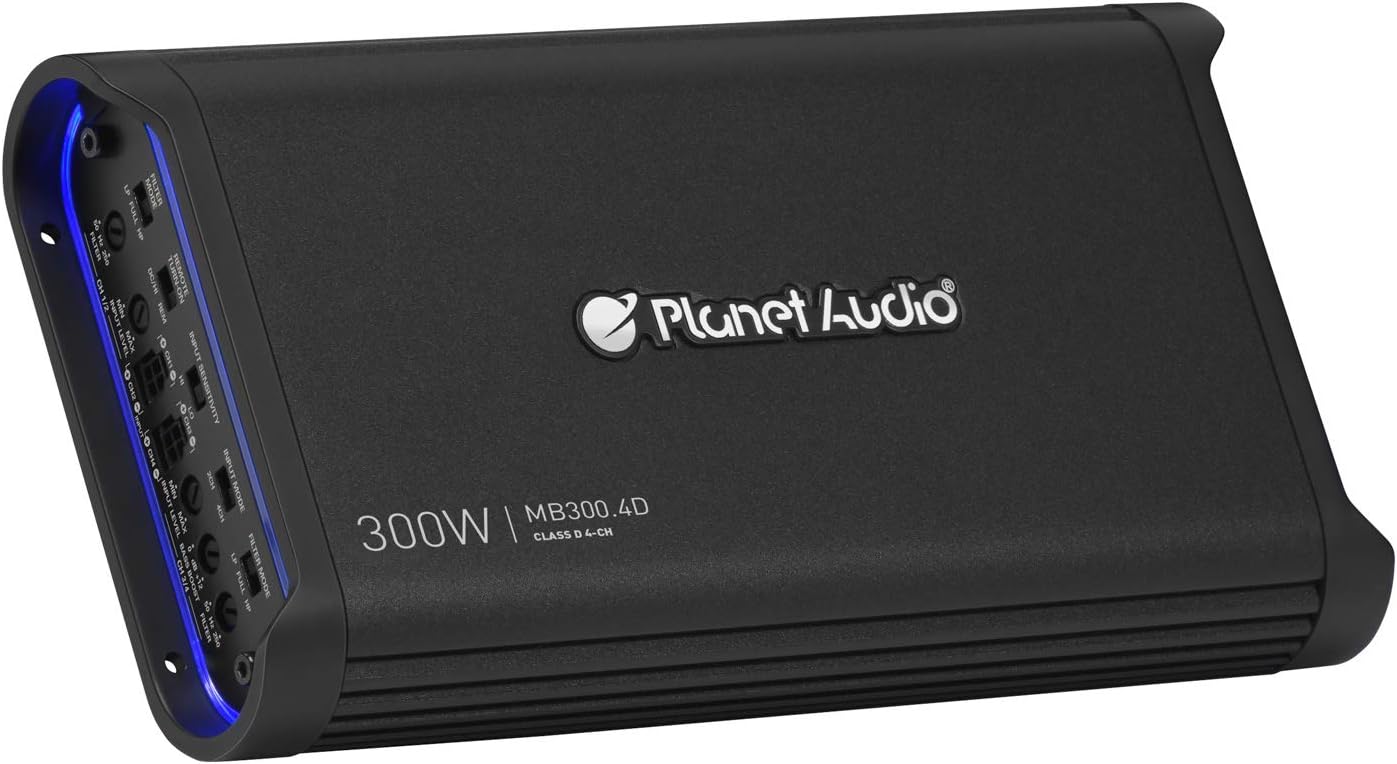

Planet Audio MB300.4D MINI BANG 1200W 4-Channel Full Range Class-D Amplifier

Product details

Features:
  • Class-D 4-Channel Amplifier
  • Amplifier will operate with 4-ohm or 2-ohm loads
  • 2 Channel and 1 Channel capable
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Speaker level input with included molex connector
  • Illuminated End Panel Strips

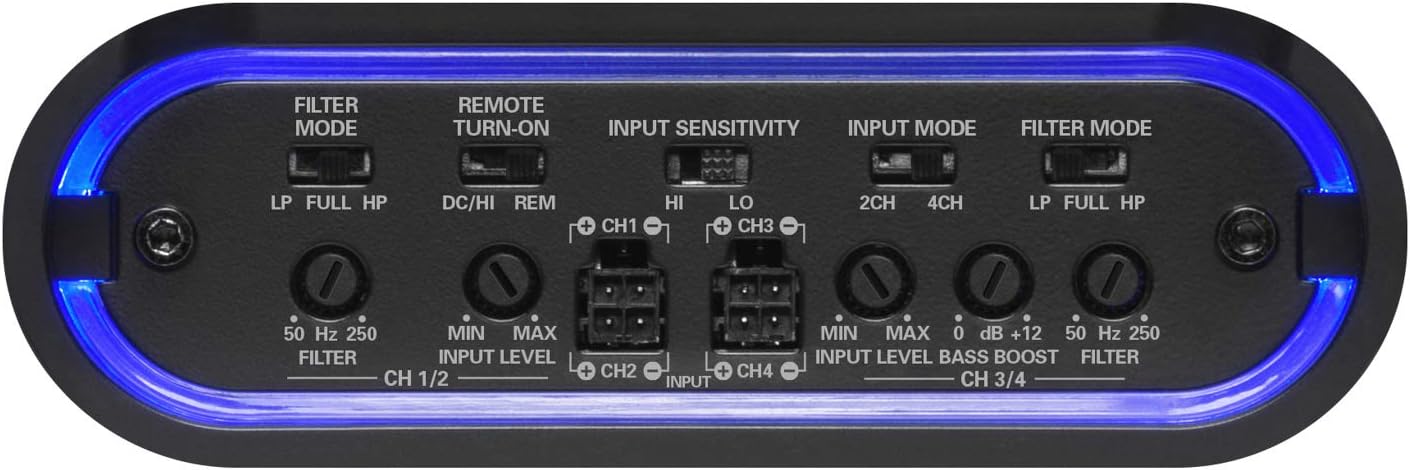

Pre-Amp features:
  • Variable high-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz

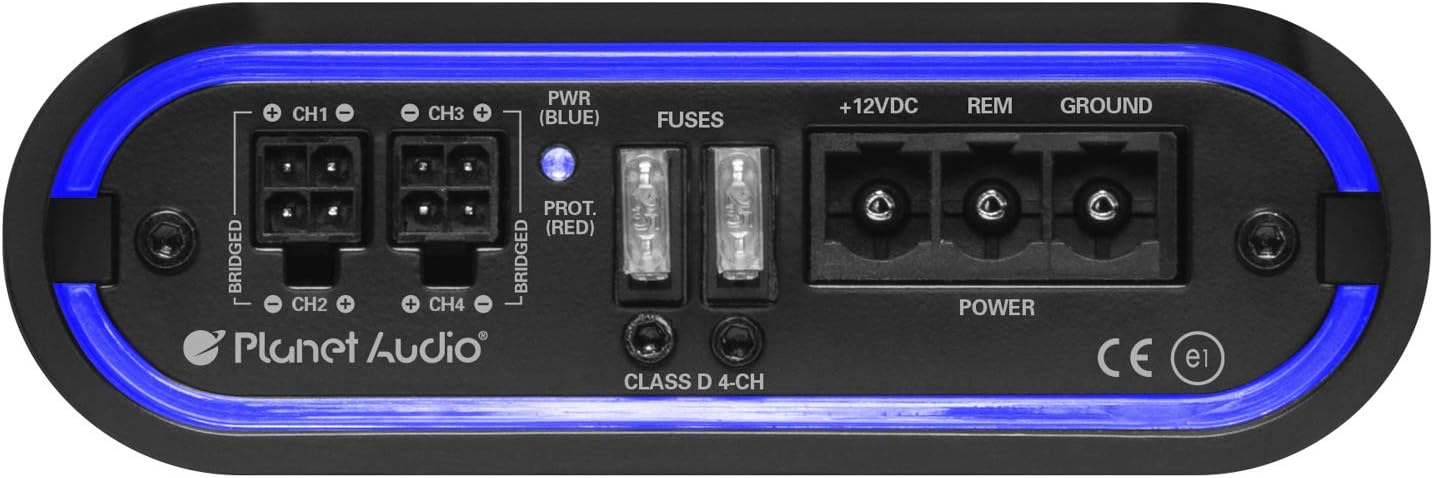

Inputs and Outputs:
  • 4-channel operation
  • High Level Harness Inputs
  • Low Level molex Inputs
  • Input Sensitivity
Max Power Output:
  • Total Power Output: 300W x 4
RMS Power Output:
  • 2 Ω 56W x 2
  • 4 Ω 29W x 2
  • 4 Ω 113W x 1 (Bridged)
Dimensions:
  • Overall Dimensions: 1.7 inch (H) x 9.5 inch (L) x 5.12 inch (W)

Specifications


Manufacturer Planet Audio
Part Number MB300.4D
Amplifier Topology Class Class D
Number of Channels 4 Channel
Total RMS Power at 2 ohm 56.00
Total RMS Power at 4 ohm 29.00
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Speaker level inputs Yes
Gain Control Yes
Built in Crossover Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
CEA2006 Compliant No
