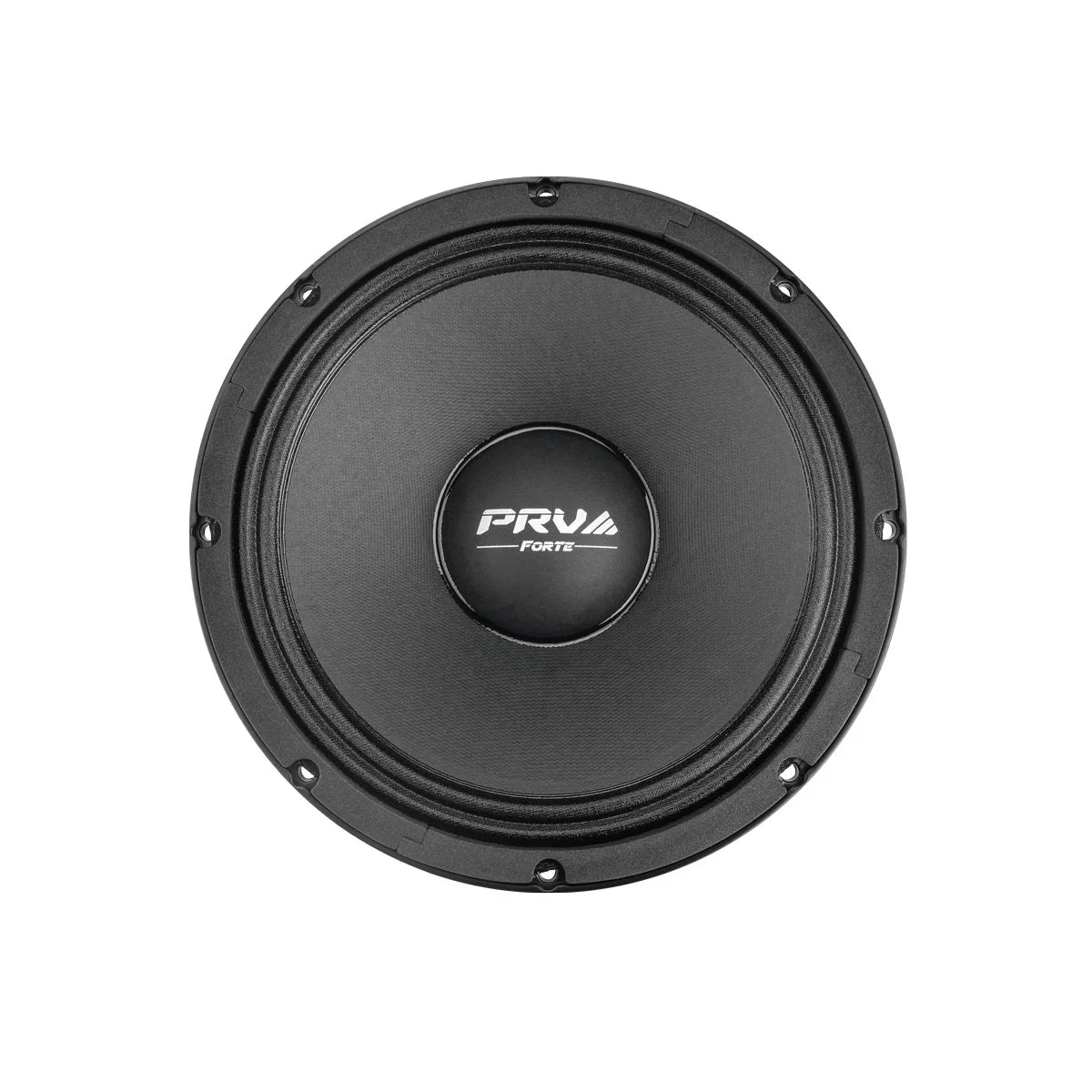

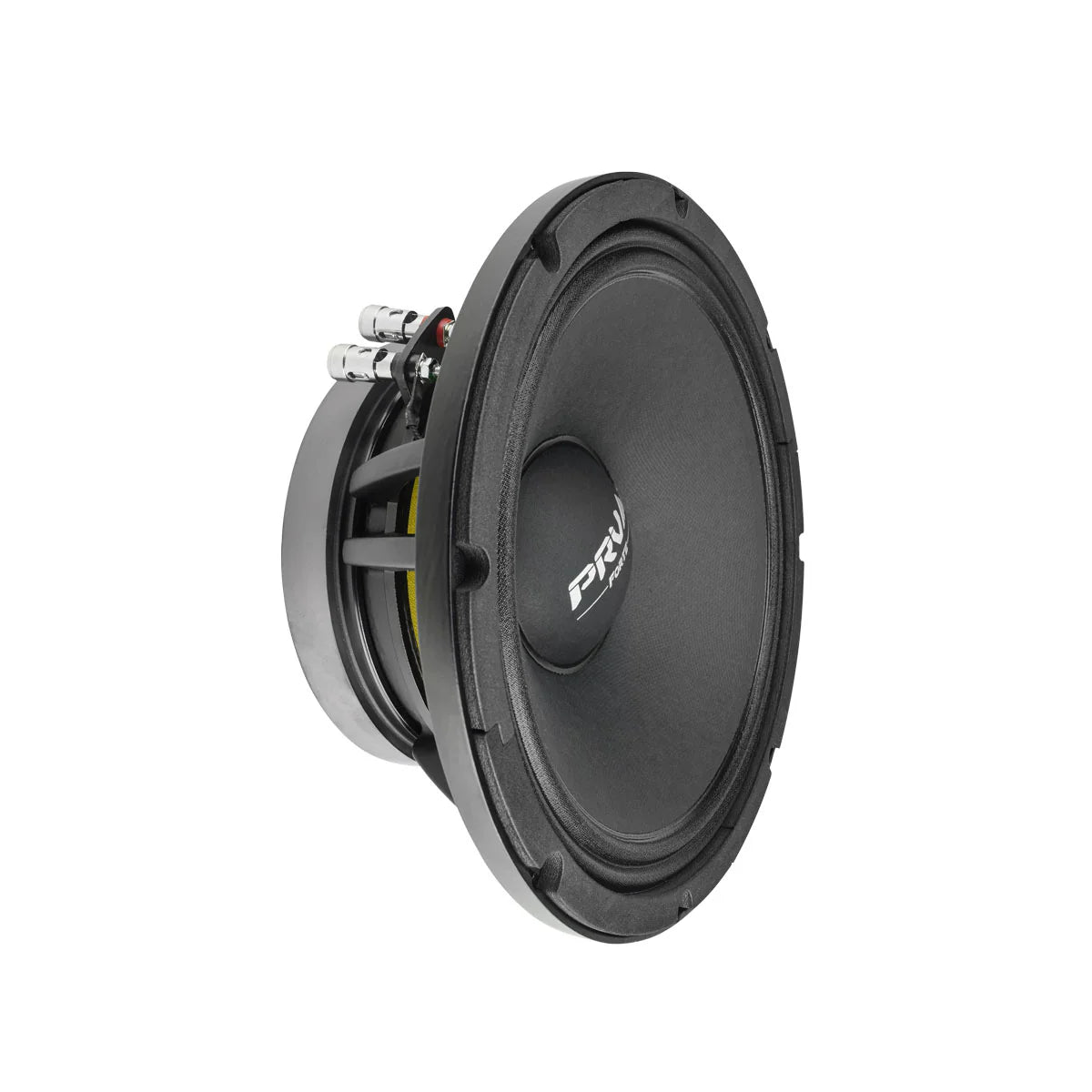

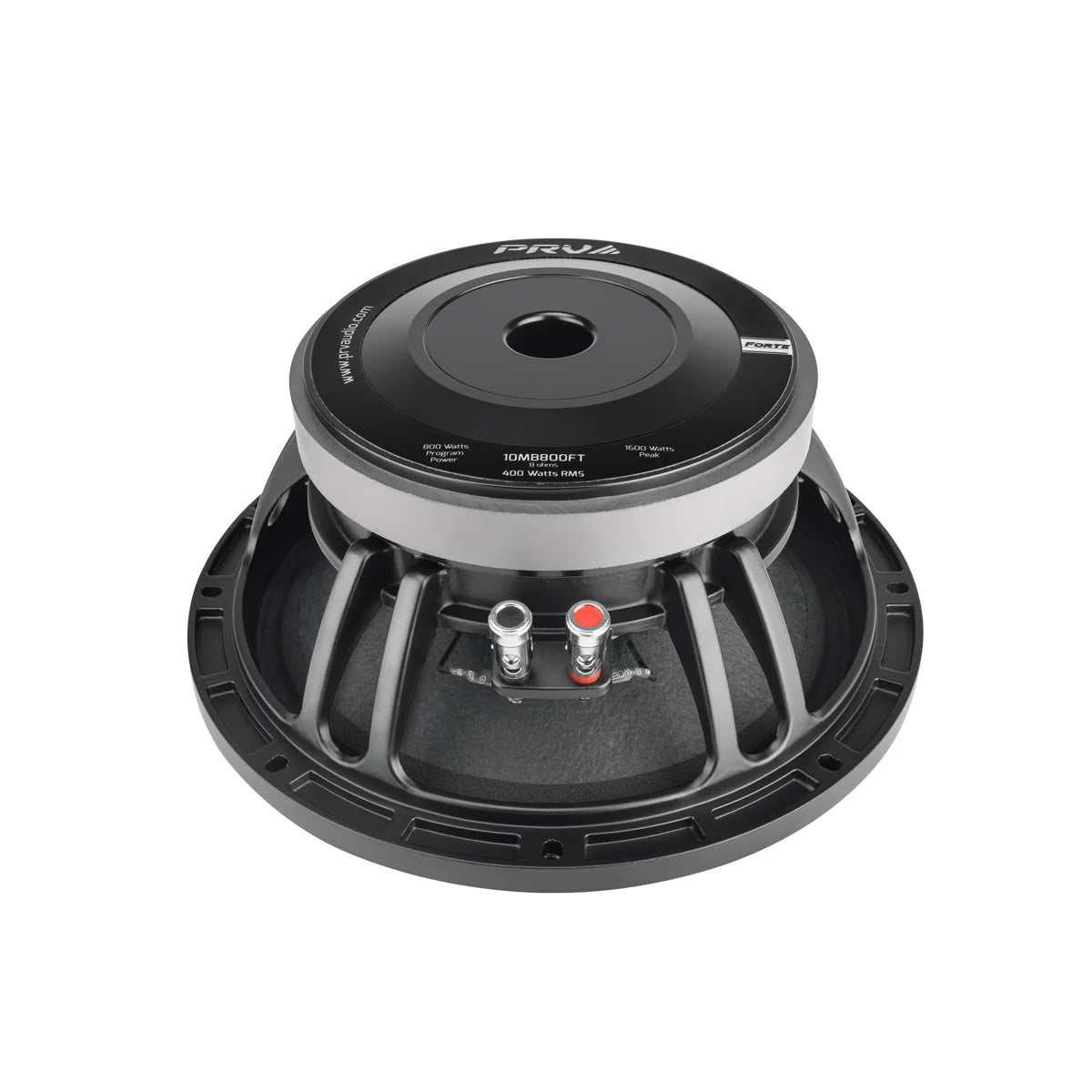

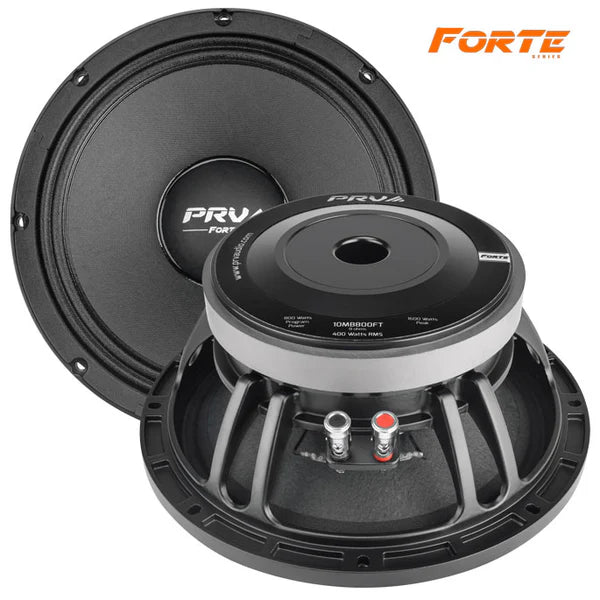

PRV Audio 10MB800FT 10" Midbass Loudspeaker 8-Ohm
For high output speaker systems, PRV Audio’s 10MB800FT midbass is an excellent option capable of amazing performance. A great new addition to the Forte Series, where more power handling and less distortion on midlow midbass frequencies is the key.
The 10MB800FT is a rugged 10″ midbass that combines midbass punch and mid clarity at remarkable SPL output with low distortion and extended midbass response. Optimized for use in compact enclosures, this midbass speaker provides a smooth vocal response with great output from 500 Hz to 1500 Hz and useful response up to 6,500 Hz, making it a great choice for larger 2 and 3 way systems.
- 2.5″ Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance, 8 ohms
- Ventilated voice coil gap reduces power compression
- High Xmax for more mid bass output
- 800 watts continuous program power rating makes the high acoustical output
- Excellent performance in 2-way or 3-way systems
To get superior fidelity, the special composite cone is built with non-pressed paper for a reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker. The Perfect speaker for TUKUTEO® sound.
The high sensitivity rating of 99 dB 1W/1M which makes it capable of generating a lot of output! This 10″ is a great midbass option for pro audio systems or high SPL automotive systems, where extremely high output is required.
The voice coil is wound on a 2.5″ glass fiber with aluminum wire keeping weight to a minimum for an incredibly quick transient response. Engineered with 11 mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.
Popular Combination with the 10MB800FT is the WG2500Ti Titanium Compression Driver – with Our DSP 2.8x ( digital sound processor ) the PRO Audio On Wheels systems can easily tune both components to blend in together with the following settings:
10MB800FT – High Pass Filter HPF 95 Hz BT18 Filter to Low Pass Filter LPF 1800 Hz BT12 Following the compression driver from 1200Hz all way to 17,000Hz
Recommended system package 8x 10MB800FT + 4x WG2500Ti
GENERAL SPECIFICATIONS
| Nominal Diameter | 10″ (254 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 400 Watts |
| Program Power | 800 Watts |
| Sensitivity 2.83V at 1m | 99 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 120 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 65 – 6,500 Hz |
| Voice Coil Diameter | 2.5″ (65 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 11.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 36.73 l |
| Excursion (mathematical)*** | Xmax | 3.50 mm |
| Free Air Resonance | Fs | 64.72 Hz |
| Mechanical Factor | Qms | 15.39 |
| Electrical Factor | Qes | 0.33 |
| Total Factor | Qts | 0.32 |
| Cone Area | Sd | 380 cm² |
| Mechanical Mass | Mms | 33.20 g |
| Bl Factor | Bl | 14.39 Tm |
| Dc Resistance | Re | 5.1 Ohms |
| Inductance | Le | 0.40 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 29.01 g |
| Mechanical Compliance | Cms | 0.182 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 10.25” (260.5 mm) |
| Front Mount Baffle Cutout | 9.01” (229 mm) |
| Mounting Depth | 4.09” (104 mm) |
| Overall Depth | 4.68” (119 mm) |
| Net Weight | 11.01 Lbs (5.0 kg) |
| Shipping Weight | 11.90 Lbs (5.4 kg) |
| Carton Dimensions W x L x H | 10.82 ” x 10.82 ” x 5.12” (275 x 275 x 130 mm) |
