Rockford fosgate 1,000 Watt Mono IPX6 Element Ready™ Amplifier

Product details

Serious sound, made simple. The M5 amplifiers feature the next level of Element Ready™ design from Rockford Fosgate that’s built as rugged as the outdoor environment it’s used in.

Element Ready™: Purpose Built for the Marine Environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV, making sure your amplifiers stand the test of time.

C.L.E.A.N.: Our Patented circuit with input and output clip indicators help match the source unit to the amplifier, which makes for easy set-up and optimizes musical output.

P.O.W.E.R. Supply: The unique P.O.W.E.R. supply continues to generate more than rated power as the voltage increases, giving you the output, you demand.

FEATURES AT A GLANCE

• Play all day, easy to integrate, and keep music playing for extended lengths of time
• RATS (Rockford Automated Testing System) proprietary quality & performance tested
• PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
• C.L.E.A.N. input/output clip detection and indicator LEDs
• Element Ready™ design with integrated harness & panel seals
• Patented Constant Power™ boosts power up to 25% across varying impedance loads
• Balanced Differential Inputs eliminates noise picked up by signal cables
• Low Impedance Stability
• Focused mass heat sink allows critical aluminum material to be located around hottest internal devices

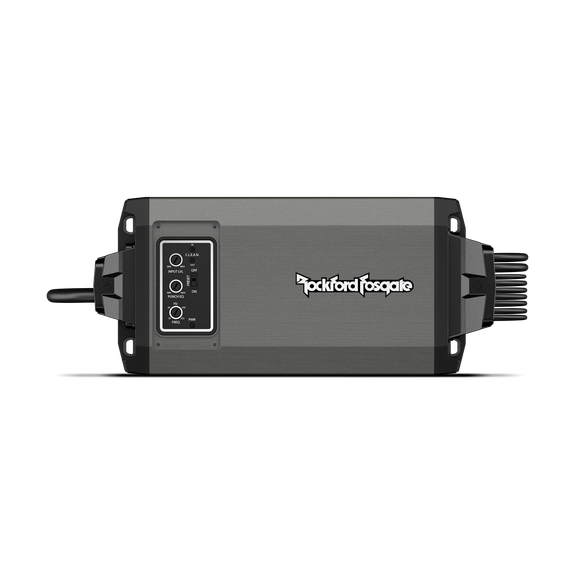

• Top mounted control panel with Element Ready™ smoked lens cover
• MESHA 4 reduces MOSFET temps, lowers distortion, increases durability and prolongs device life span
• 2-Year Warranty
• Remote-Out feature when using high level inputs
• Chassis Isolation from mounting points greatly reduces possible introduction of vehicle noise
• Discrete Surface Mount technology with 1% tight-tolerances for high efficiency & reduced cross-talk
• OEM and aftermarket radio integration inputs
• Class-BD technology provides 75-80% efficiency over traditional class A/B designs

Specifications

Cta-2006 Compliant

Number of Channels

1

Total Power
(Sum of Rated Power)

1000 Watts

Rated Power
(RMS Continuous Power)

CTA-2006 Continuous Power Rating
≤1.0% THD+N
500 Watts x 1 @ 4Ω
750 Watts x 1 @ 2Ω
750 Watts x 1 @ 1Ω

Dynamic Power
(PVC/PowerCube®)

CTA-2006 Dynamic Power Rating
525 Watts x 1 @ 4Ω
900 Watts x 1 @ 2Ω
1000 Watts x 1 @ 1Ω

Bridgeable

—

Frequency Response

30Hz - 245Hz

Input Sensitivity

150mVrms - 12Vrms

Circuit Topology Class

Class-BD

Efficiency (average)

>80%

Total Harmonic Distortion (THD+Noise)

<0.1% THD+N @ 1 Watt

Signal Input

Low-Level: 2 RCA
High-Level: 4-Pin Molex

Signal Output

—

Tone Controls

Sub: 0-18dB @ 45Hz

Crossover Controls

Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth

Infrasonic:
30 Hz @ 12dB/Octave Butterworth
