1-4 DAYS DELIVERY
-13%
Rockford Fosgate
Rockford fosgate M2 500 Watt Mono Element Ready™ Amplifier
$349.99
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
- Reviews

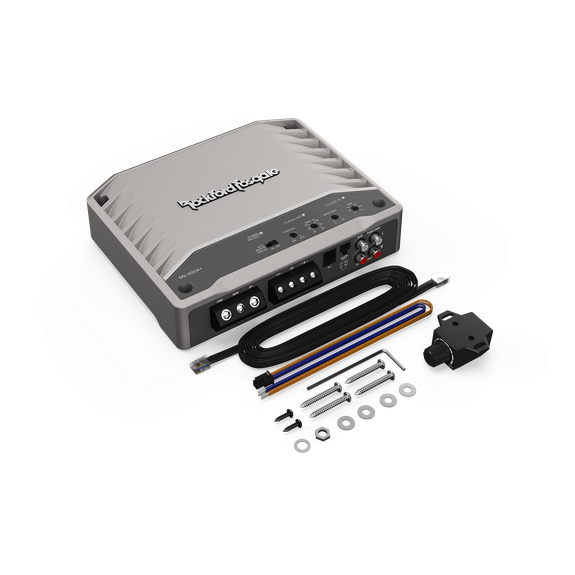

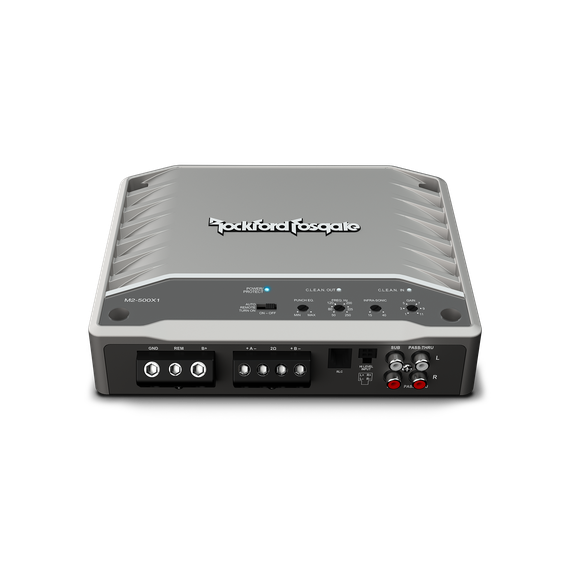

Rockford fosgate M2 500 Watt Mono Element Ready™ Amplifier
Product details
Designed to withstand the elements, the M2-500X1 Element Ready™ amplifier is a 500 watt, class-D model, capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. For subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.
FEATURES AT A GLANCE
- UV stable powder coated cast aluminum heatsink

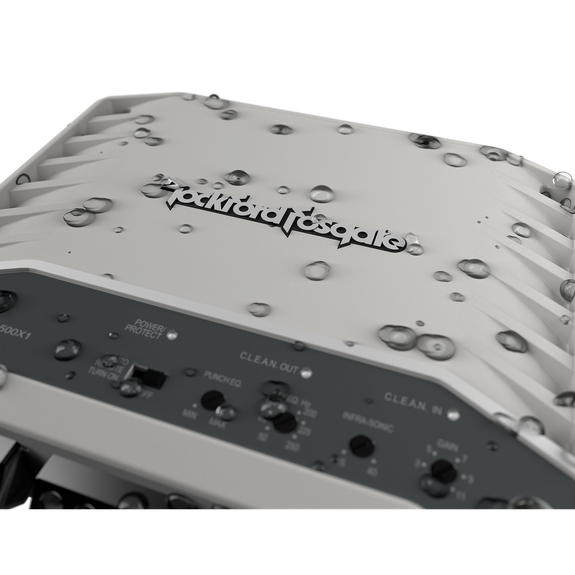

- Element Ready™ design protects against outdoor exposure
- Conformal coated circuit board protects against dust and water
- Zinc Nickel-plated Marine grade brass connection terminals
- Optimized using AudioGraph PowerCube measurement tool
- Integration with OEM and Aftermarket Radios
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Low Impedance Stability
- RATS (Rockford Automated Testing System) proprietary quality & performance tested
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- Continuously Variable On Board Punch EQ
- Short Circuit & Over Current Protection

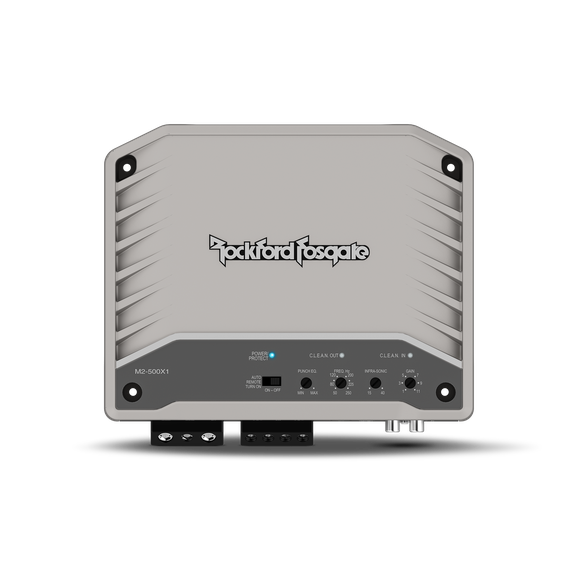

- Top Mounted Control Panel
- Includes RLC Remote Level Control
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- Balanced Differential Inputs eliminates noise picked up by signal cables
- Variable Infrasonic Filter

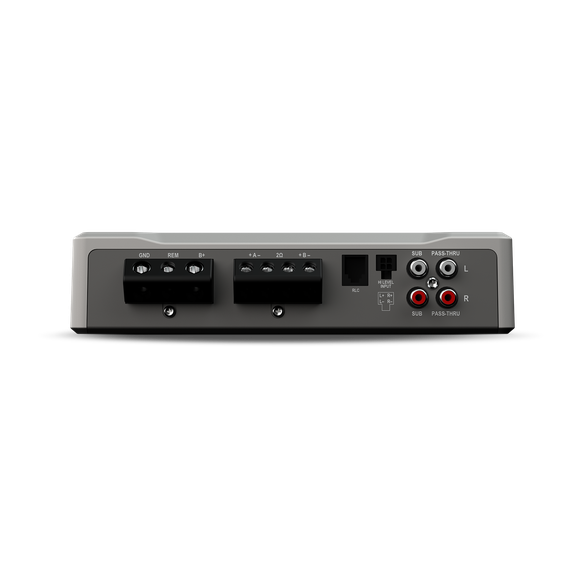

- Integrated Power and Speaker Terminals
- "Auto-Sense" turn-on with remote out (high level in)

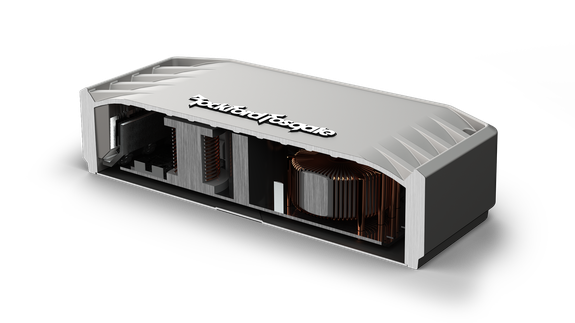

- Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
- CEA-2006 Compliant & CE Compliant
- 2-Year Warranty
- RCA pass-thru outputs
- Rollback Protection
Specifications
Cta-2006 Compliant
Number of Channels
1
Total Power
(Sum of Rated Power)
(Sum of Rated Power)
500 Watts
Rated Power
(RMS Continuous Power)
(RMS Continuous Power)
300 Watts x 1 @ 4Ω
500 Watts x 1 @ 2Ω
500 Watts x 1 @ 2Ω
Dynamic Power
(PVC/PowerCube®)
(PVC/PowerCube®)
350 Watts x 1 @ 4Ω
590 Watts x 1 @ 2Ω
590 Watts x 1 @ 2Ω
Bridgeable
No
Frequency Response
20 Hz - 250 Hz
Input Sensitivity
Low-Level: 150 mV - 4 V
High-Level: 450 mV - 12 V
High-Level: 450 mV - 12 V
Circuit Topology Class
Class D
Efficiency (average)
Total Harmonic Distortion (THD+Noise)
4Ω: <1.0%
2Ω: <1.0%
2Ω: <1.0%
Signal Input
Low-Level: 2 RCA
High-Level: 4-Pin Molex
High-Level: 4-Pin Molex
Signal Output
Low-Level: 2 RCA
(Pass-Thru active with RCA or Hi-Level input)
(Pass-Thru active with RCA or Hi-Level input)
Tone Controls
0 to +18 dB @ 45 Hz
Crossover Controls
Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Infrasonic:
15 Hz - 40 Hz @ 12dB/Octave Butterworth
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Infrasonic:
15 Hz - 40 Hz @ 12dB/Octave Butterworth
Remote Controls
Yes
Visual Indicators
Power/Protect
C.L.E.A.N. In
C.L.E.A.N. Out
C.L.E.A.N. In
C.L.E.A.N. Out
Power Wire Gauge
4 AWG
Power Input Connector
Compression Terminal Block
Speaker Wire Gauge
8 AWG
Speaker Output Connector
Compression Terminal Block
Cooling
Convection
Heatsink
Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
(not included)
80 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)
52 A
Suggested Alternator
Included In The Box
Dimensions (H x W x D)
1.9" x 6.8" x 8.5"
(4.9 cm x 17.3 cm x 21.5 cm)
(4.9 cm x 17.3 cm x 21.5 cm)
Shipping Weight
4.8 Lbs. (2.18 Kg)
