Rockford fosgate M2 750 Watt 5-Channel Element Ready™ Amplifier

-8%

Rockford Fosgate

Rockford fosgate M2 750 Watt 5-Channel Element Ready™ Amplifier

Name: Rockford fosgate M2 750 Watt 5-Channel Element Ready™ Amplifier
Brand: Rockford Fosgate
SKU: M2-750X5
Price: 569.99 USD
Availability: InStock

~~$619.99~~

$569.99 In Stock Pre-Order Sold out

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

Description
Shipping and Refund
Reviews

Rockford fosgate M2 750 Watt 5-Channel Element Ready™ Amplifier

Product details

Designed to withstand the elements, the R2-750X5 amplifier is an Element Ready™ 750 watt, full-range class-D model, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono with a subwoofer channel that can be run at 4Ω or 2Ω. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass.

FEATURES AT A GLANCE

C.L.E.A.N. input/output clip detection and indicator LEDs
Conformal coated circuit board protects against dust and water
Optimized using AudioGraph PowerCube measurement tool
Zinc Nickel-plated Marine grade brass connection terminals
Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers

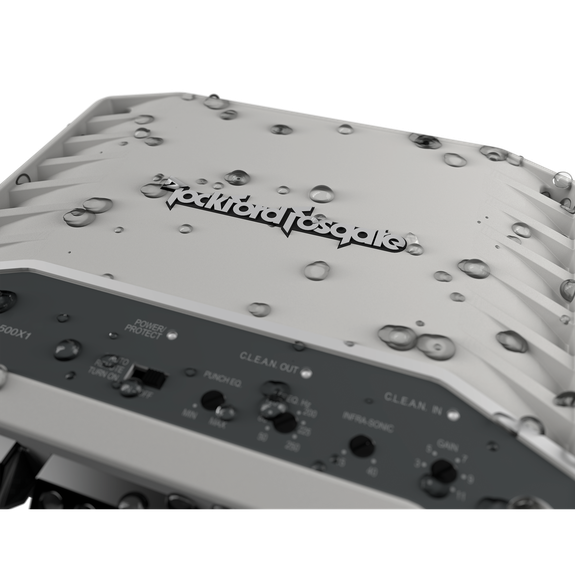

Element Ready™ design protects against outdoor exposure
Integration with OEM and Aftermarket Radios
RATS (Rockford Automated Testing System) proprietary quality & performance tested
Low Impedance Stability
Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
Continuously Variable On Board Punch EQ
Short Circuit & Over Current Protection

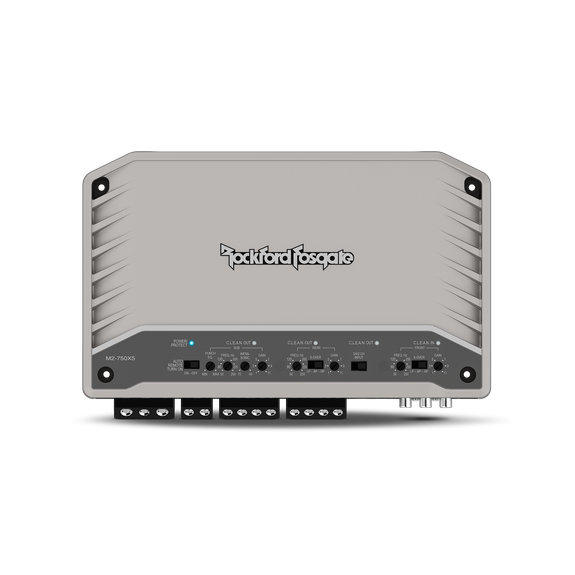

Top Mounted Control Panel
Includes RLC Remote Level Control
2/4/5 Channel Input Selection Switch
Balanced Differential Inputs eliminates noise picked up by signal cables
Variable Infrasonic Filter
UV stable powder coated cast aluminum heatsink
Integrated Power and Speaker Terminals
Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
"Auto-Sense" turn-on with remote out (high level in)
CEA-2006 Compliant & CE Compliant
2-Year Warranty
Rollback Protection

Specifications

Cta-2006 Compliant

Number of Channels

Total Power
(Sum of Rated Power)

750 Watts

Rated Power
(RMS Continuous Power)

50 Watts x 4 + 200 Watts x 1 @ 4Ω
100 Watts x 4 + 350 Watts x 1 @ 2Ω
200 Watts x 2 + N/A @ 4Ω Bridged/Mono

Dynamic Power
(PVC/PowerCube®)

70 Watts x 4 + 241 Watts x 1 @ 4Ω
114 Watts x 4 + 426 Watts x 1 @ 2Ω
234 Watts x 2 + N/A @ 4Ω Bridged/Mono

Bridgeable

Yes

Frequency Response

20 Hz - 20 kHz

Input Sensitivity

Low-Level: 150 mV - 4 V
High-Level: 450 mV - 12 V

Circuit Topology Class

Class D

Efficiency (average)

Total Harmonic Distortion (THD+Noise)

4Ω: <1.0%
2Ω: <1.0%

Signal Input

Front Low-Level: 2 RCA
Front High-Level: 4-Pin Molex
Rear Low-Level: 2 RCA
Rear High-Level: 4-Pin Molex
Sub Low-Level: 2 RCA
Sub High-Level: 4-Pin Molex

Signal Output

N/A

Tone Controls

0 to +18 dB @ 45 Hz

Crossover Controls

Front High-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Front Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Rear High-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Rear Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Sub Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Sub Infrasonic:
15 Hz - 40 Hz @ 12dB/Octave Butterworth

Remote Controls

Yes

Visual Indicators

Power/Protect
C.L.E.A.N. In
C.L.E.A.N. Out (front)
C.L.E.A.N. Out (rear)
C.L.E.A.N. Out (sub)

Power Wire Gauge

4 AWG

Power Input Connector

Compression Terminal Block

Speaker Wire Gauge

8 AWG

Speaker Output Connector

Compression Terminal Block

Cooling

Convection

Heatsink

Operating Voltage

9 - 16 VDC

Recommended Fuse
(not included)

120 A

Average Current Draw (13.8V Music)

Max. Current Draw (13.8V Sinewave)

71 A

Suggested Alternator

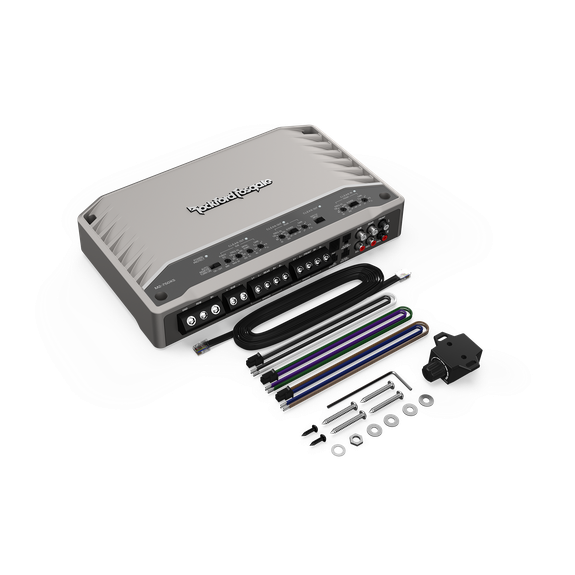

Included In The Box

Dimensions (H x W x D)

1.9" x 6.8" x 11.2"
(4.9 cm x 17.3 cm x 28.5 cm)

Shipping Weight

6.13 Lbs. (2.78 Kg)
