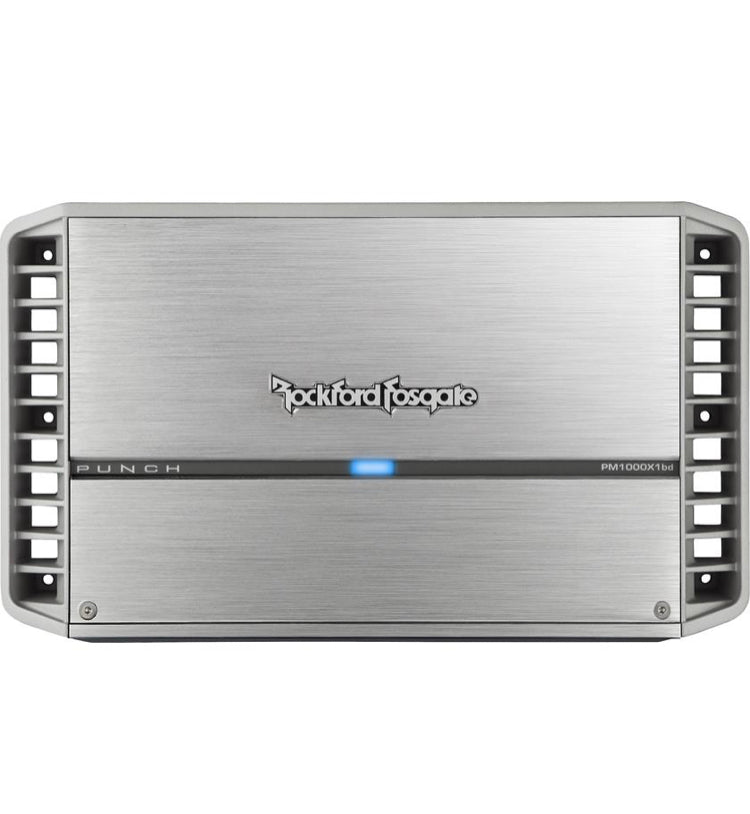

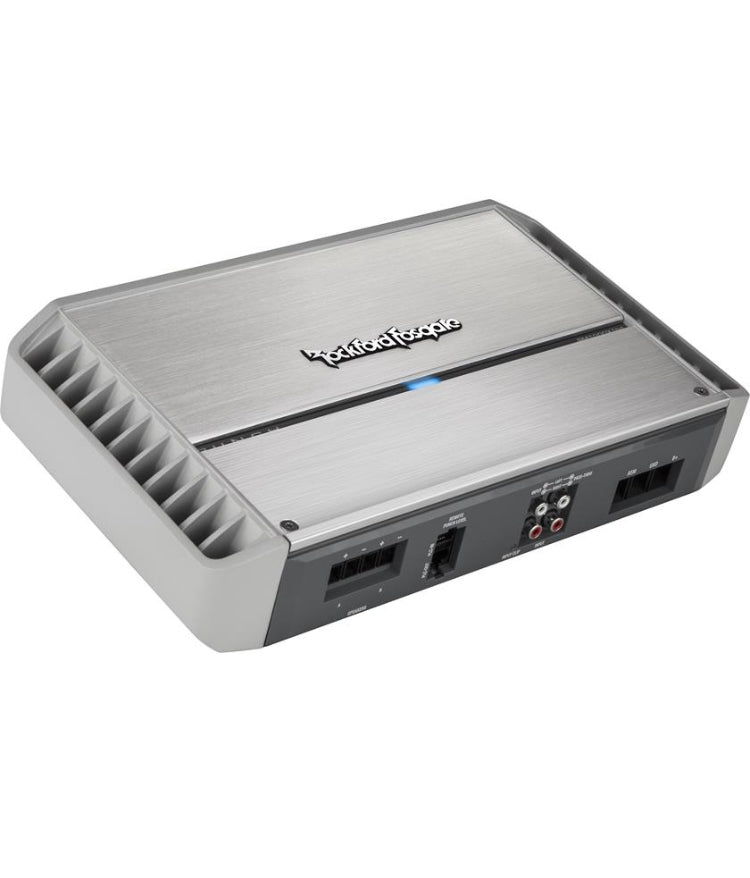

A powerful amp made for powersports

Rockford Fosgate built their PM1000X1bd mono amplifier for marine, motorcycle, and powersport applications. If you demand powerful bass while you're blasting along a trail or waterway, this compact amp has all the power you need

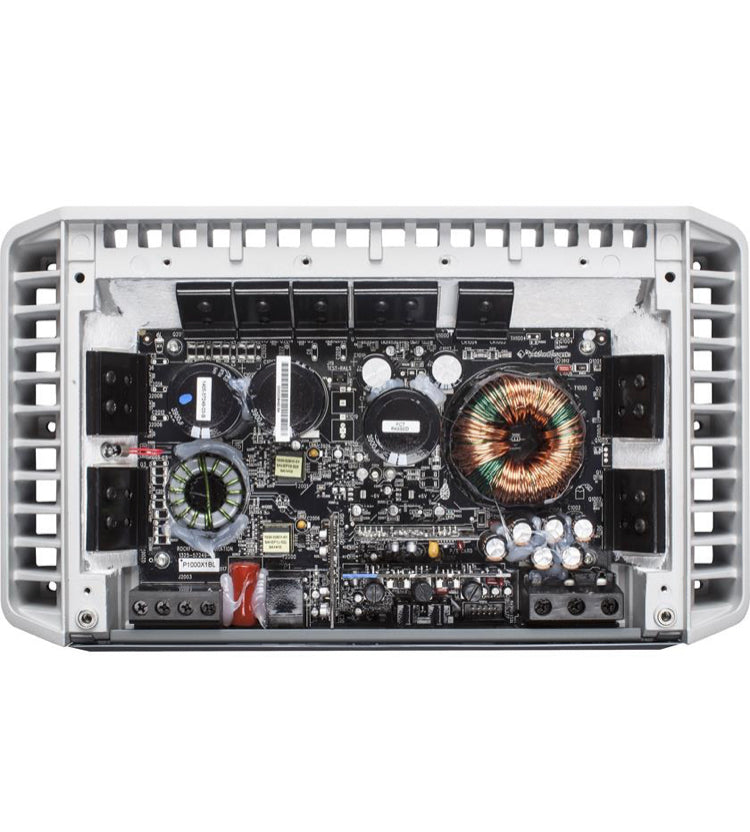

The PM1000X1bd features a conformal-coated circuit board

Boost your bass wherever you go

Ultra-efficient Class-bd circuit topology helps the PM1000X1bd deliver maximum boom for your bucks. This versatile amp will operate safely with loads as low as 1 ohm, so you can send up to 1000 watts RMS to a single dual voice coil sub or to a multi-sub setup.

Made for long life and easy installation

Life on the water or in the dirt can be hard on electronics, so the PM1000X1bd is built tough. Conformal-coated circuitry withstands moisture and dirt, while the stainless steel hardware won't succumb to corrosion. Rockford Fosgate also uses the newest Maximum Efficiency Heat Sink Application (MEHSA3) construction process, which yields up to five times better heat transfer than traditional mounting techniques. As a result, this amp will rock out without overheating, even when tucked into a compact space.

Level setting made easy

The PM1000X1bd uses Rockford Fosgate's CLEAN level setting technology, so there's no more guesswork while setting your gain levels. Easy-to-see LED indicators identify clipping so you can set your amp up for maximum performance while eliminating distortion.

Confused about impedance? Check out our article on matching subs and amps.

Product highlights:

• mono subwoofer amplifier
• 300 watts RMS x 1 at 4 ohms (1000 watts peak)
• 500 watts RMS x 1 at 2 ohms
• 1000 watts RMS at 1 ohm
• CEA-2006 compliant
• Class BD amp technology
• conformal-coated circuit board — suitable for power sports and marine applications
• marine-grade stainless steel hardware
• variable low-pass filter (50-250 Hz, 12 dB/octave)
• speaker-level inputs (speaker wire to RCA adapter required)
• frequency response: 20-250 Hz
• built-in Punch EQ with +18dB boost @ 45Hz.
• fuse rating: 140A x 1 (fuse not included)
• C.L.E.A.N. set-up technology with LED input/output indicators

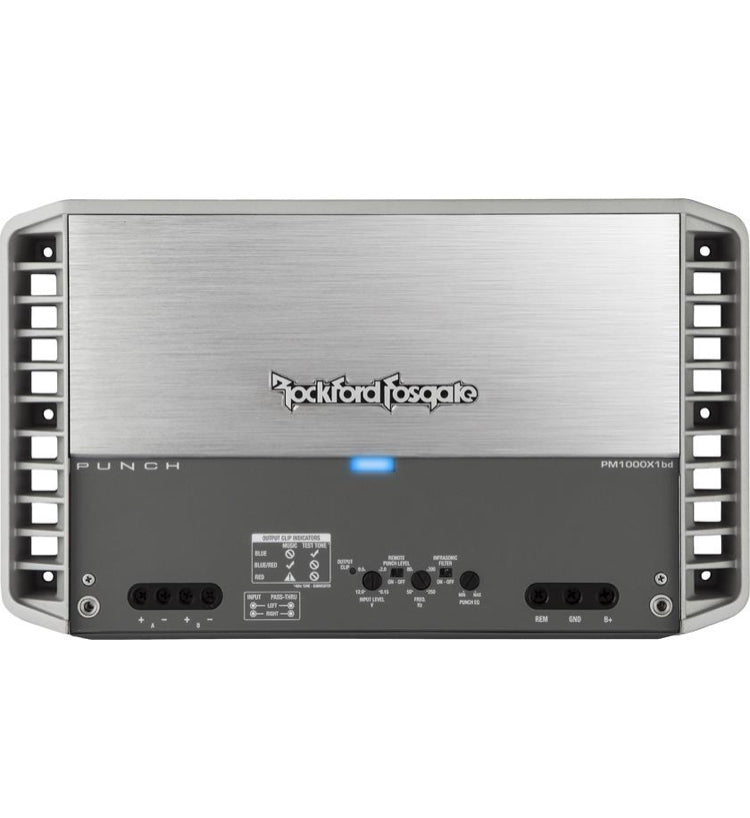

• hidden top-mount control panel
• dimensions: 13-3/8"W x 2-7/16"H x 8-13/16"D
• warranty: No warranty. Closeout item

What's in the box:

Rockford Fosgate PM1000X1BD owner's manual

• Mono subwoofer amplifier
• 2.5mm Allen wrench
• Four 1-1/2" Self-tapping screws
• Setup guide
• Certificate of Performance Verification
