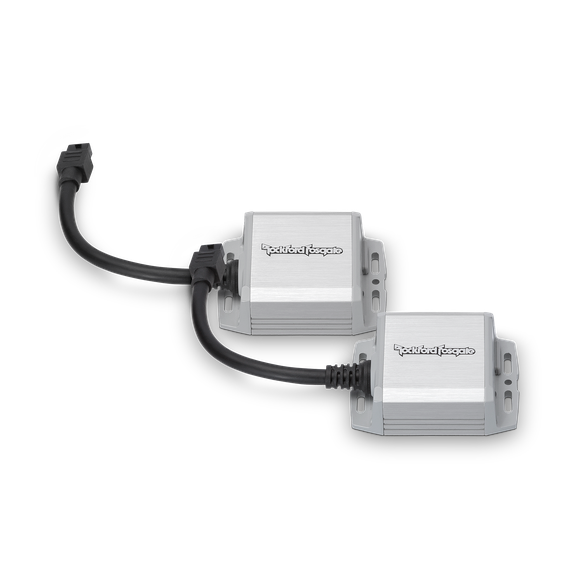

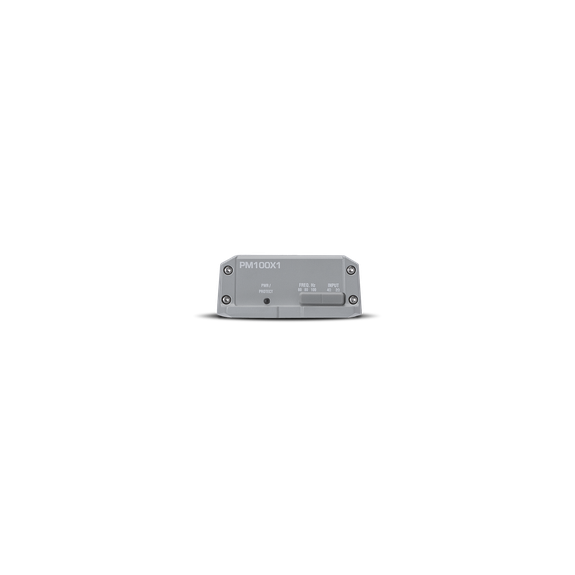

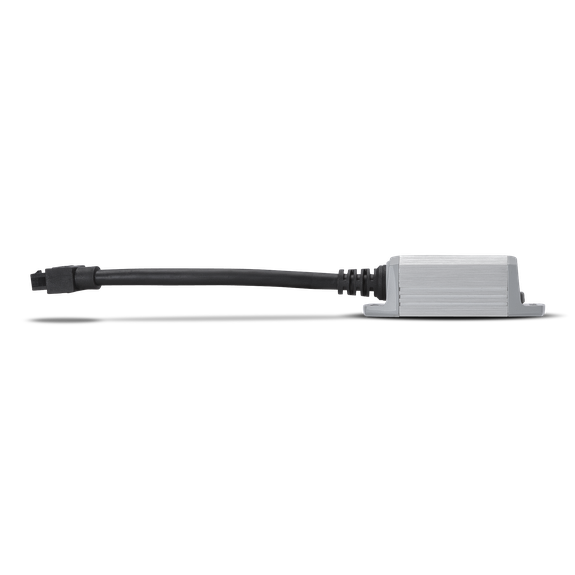

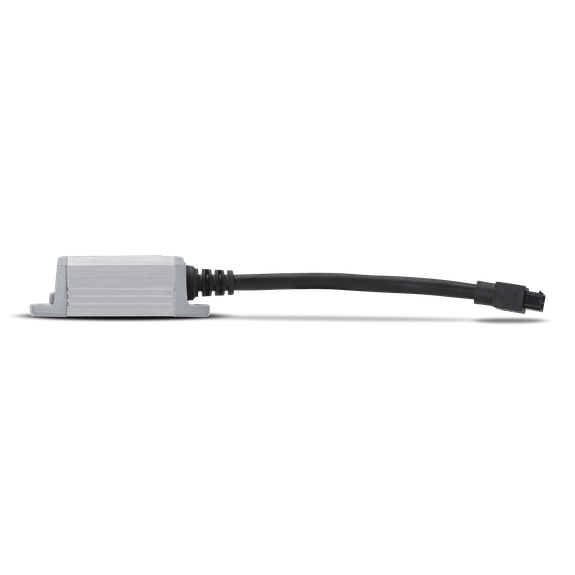

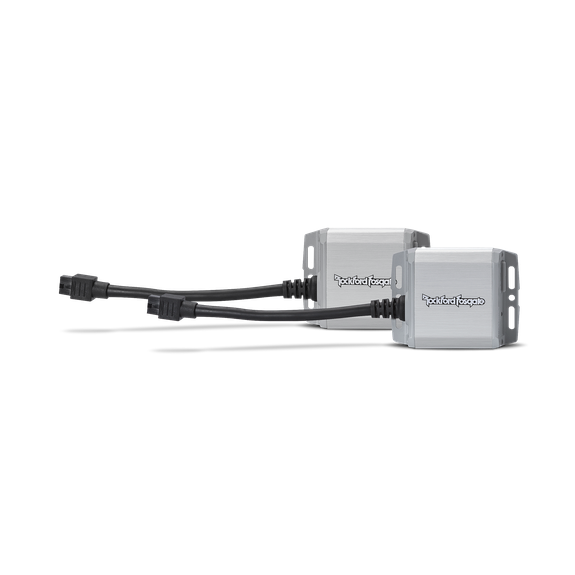

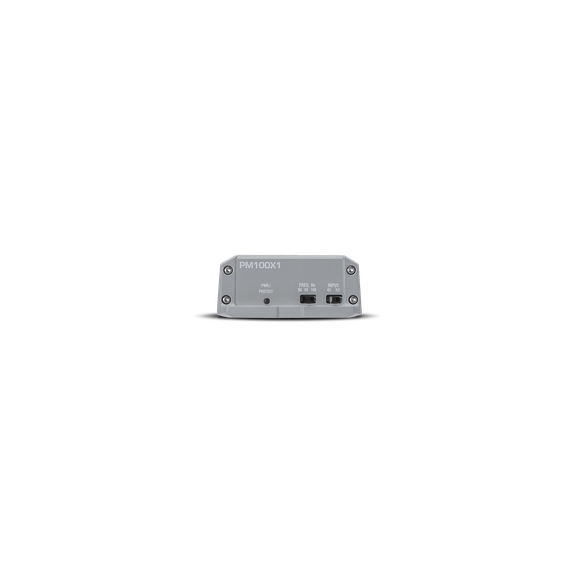

Rockford fosgate Punch 100 Watt Full-Range Element Ready Mono Amplifier (pair)
Product details
The PM100X1 is a 100 Watt dynamic power mono amp using DC and AC voltages present on existing radio speaker outputs. This design allows connection to a speaker wire without running a B+ cable. It also presents a safe load to the radio amp circuit to eliminate excessive wear and tear on the radio, making it ideal for aftermarket radios. The conformal coated PCB and enclosure are IPX6 rated for the next level in Element Ready™ protection against water, dust and UV rays. The PM100X1K is a kit that ships as a pair (2 pcs).
FEATURES AT A GLANCE
- CEA-2006 Compliant & CE Compliant
- FreeLoad charges an internal capacitor bank to produce power when needed
- Extruded Aluminum Heat Sink
- Current Limited to Protect Head Unit for Both 4 Ohm and 2 Ohm Configurations

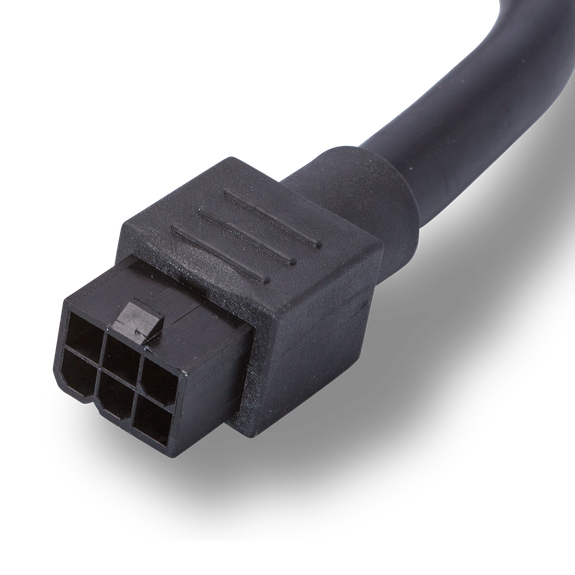

- Pig Tail Connectivity for Easy Installation
- Harvests both B+ and Audio Signal From Standard Source Unit Speaker Outputs
- Uses Stored Energy from BTL Amplifier to Produce Dynamic Power of Over 100W
- High Level Turn On
- Short Circuit & Over Voltage Protection
- Discrete surface mount technology
- Optional B+ Connection for Non-Standard Speaker Outputs
- Thermal Protection
- Small Stealth Package that Allows for Anywhere Installation
- 60, 80, and 100 Hz Selectable 12dB/Oct HP Butterworth Crossover
- Selectable 4 and 2 Ohm Play
- 2-Year Warranty
- Muted turn on
- Sold in pairs (left/right)
Specifications
Cta-2006 Compliant
Number of Channels
1
Total Power
(Sum of Rated Power)
(Sum of Rated Power)
100 Watts
Rated Power
(RMS Continuous Power)
(RMS Continuous Power)
60 Watts x 1 @ 4-Ohm
100 Watts x 1 @ 2-Ohm
100 Watts x 1 @ 2-Ohm
Dynamic Power
(PVC/PowerCube®)
(PVC/PowerCube®)
61 Watts x 1 @ 4-Ohm
109 Watts x 1 @ 2-Ohm
109 Watts x 1 @ 2-Ohm
Bridgeable
No
Frequency Response
60Hz to 20kHz +/- 1.0dB
Input Sensitivity
Circuit Topology Class
Efficiency (Average)
Total Harmonic Distortion (THD+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0%
2-Ohm: <1.0%
Signal Input
Signal Output
Tone Controls
Crossover Controls
High-Pass:
Selectable 60Hz, 80Hz, 100Hz @ 12dB/octave Butterworth
Selectable 60Hz, 80Hz, 100Hz @ 12dB/octave Butterworth
Remote Controls
Visual Indicators
Power/Protect LED
Power Wire Gauge
Power Input Connector
Speaker Wire Gauge
Speaker Output Connector
Cooling
Convection
Heatsink
Operating Voltage
9 - 16 VDC
Recommended Fuse
(Not Included)
(Not Included)
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)
Suggested Alternator
Included In The Box
Dimensions (H x W x D)
1.3 x 3 x 3.9 (in)
3.3 x 7.62 x 9.91 (cm)
3.3 x 7.62 x 9.91 (cm)
Shipping Weight
2.8 Lbs. (1.27 Kg.)
