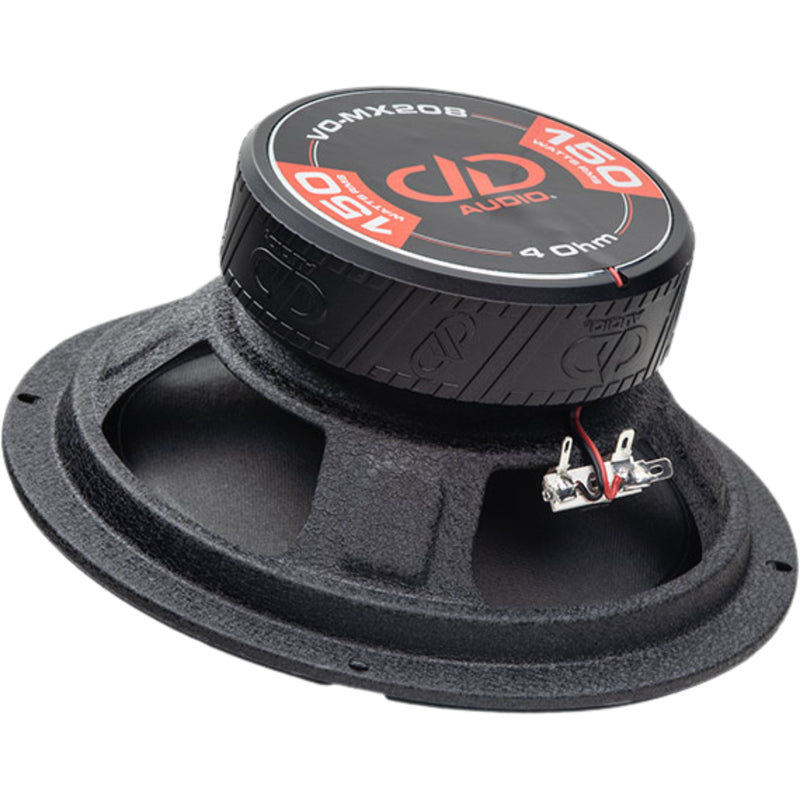

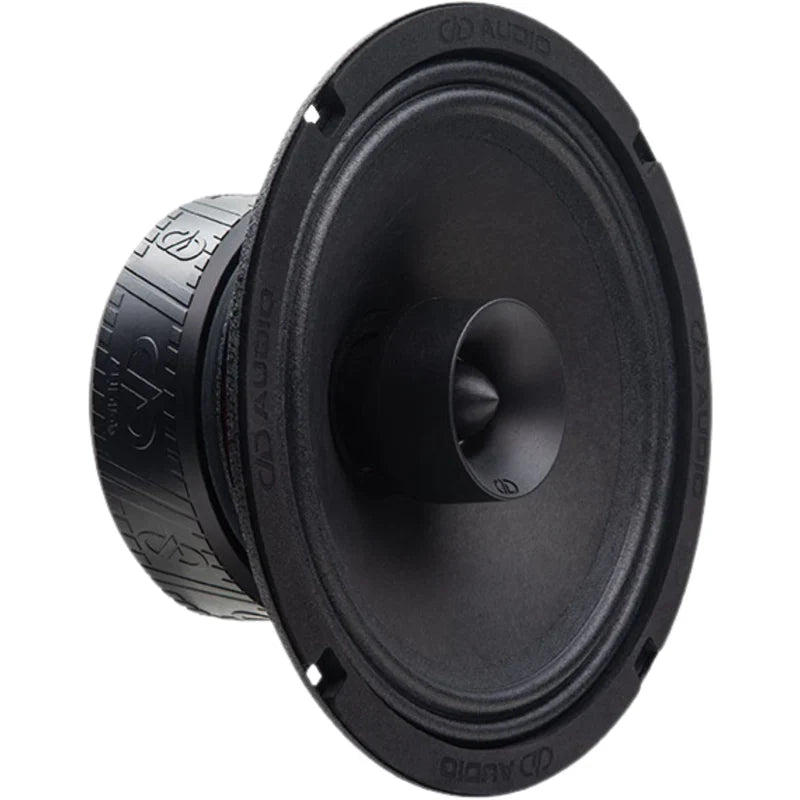

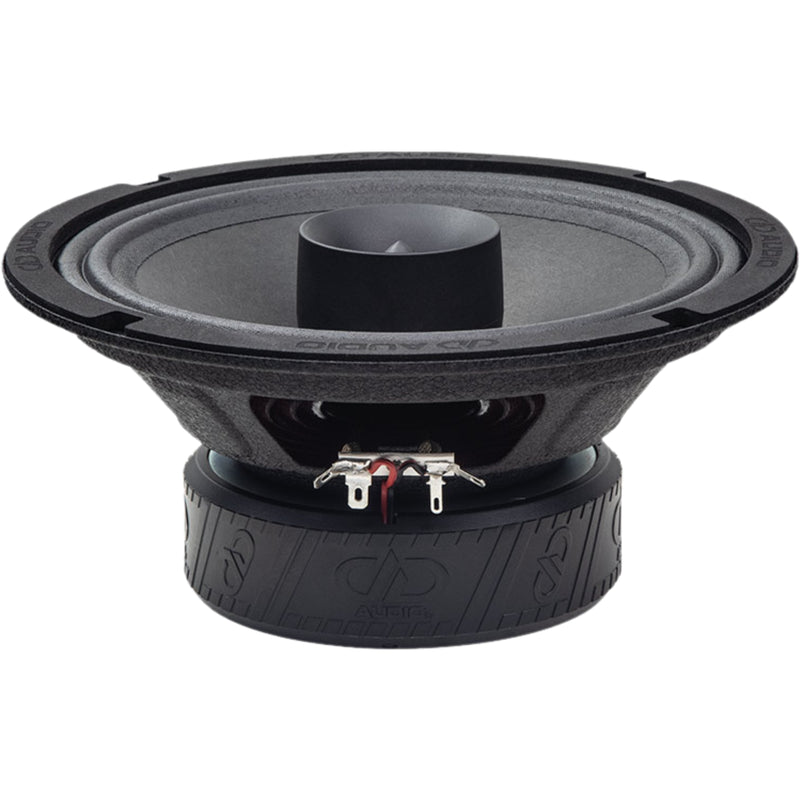

8" 150W RMS 4-OHM SVC Mid-Range Coaxial Speaker DD Audio VO-MX 200 Series

• Kapton Voice Coil Former: Reduces inductance for cleaner, more precise sound.
• Copper Shorting Ring: Minimizes magnetic distortions, ensuring high fidelity audio.
• DD Tooled Neo Magnet Compression Tweeter: Equipped with a pure titanium diaphragm for stunning high-frequency clarity.
• Moisture Resistant Cone: Polymer-infused, curvilinear design for durability in harsh environments.
• High Energy Magnets: Paired with CNC machined plates for superior magnetic strength and stability.

8" 150W RMS 4-OHM SVC Mid-Range Coaxial Speaker DD Audio VO-MX 200 Series

This Listing Includes:

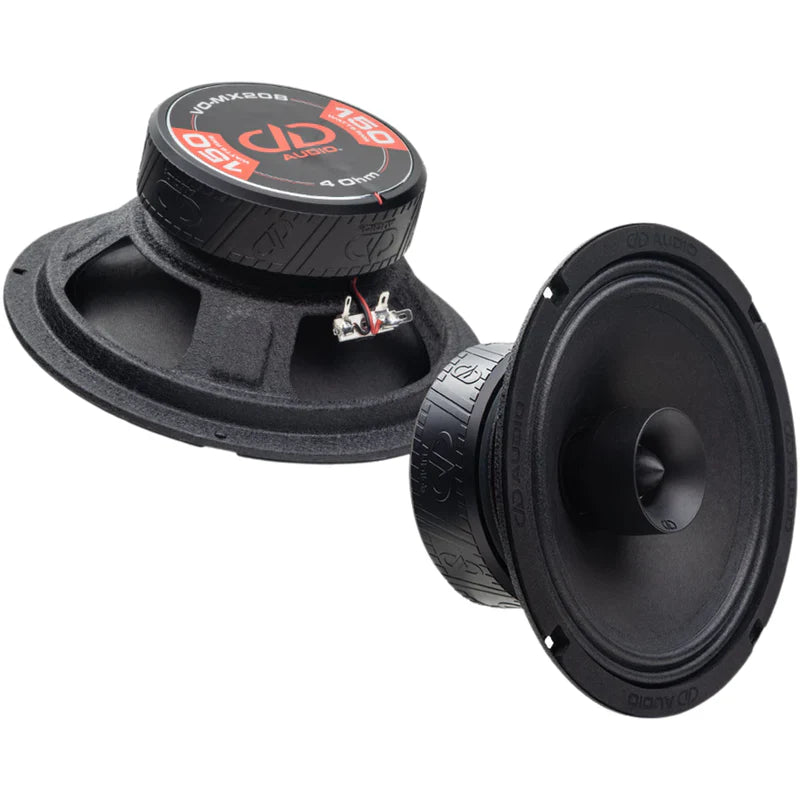

• (2) VO-MX208-S4 Coaxial Speakers

Description:

The DD Audio VO-MX 200 Series 8" Mid-Range Coaxial Speaker is a masterclass in audio engineering, designed for enthusiasts who demand both power and precision in their sound systems. With a robust 150W RMS power handling capability, this speaker effortlessly delivers clear and dynamic mid-range frequencies, making it the perfect addition to any high-performance audio setup. The integration of a DD Tooled Neo Magnet Compression Tweeter with a pure titanium diaphragm ensures that high frequencies are reproduced with stunning clarity and detail, bringing your music to life.

Built for durability and efficiency, the VO-MX 200 features a Kapton voice coil former that reduces inductance, allowing for cleaner and more accurate sound reproduction. The moisture-resistant, polymer-infused curvilinear cone is designed to perform consistently in various environments, making this speaker ideal for use in motorcycles, boats, and UTVs. The combination of CCA voice coil wire, high-energy magnets with CNC machined plates, and integrated tinsel leads ensures that this speaker is not only powerful but also reliable for long-term use. The embossed DDesign magnet boot and gasket add a touch of style, making this speaker as visually impressive as it is sonically.

Features:

• Kapton Voice Coil Former for Decreased Inductance
• Copper Shorting Ring To Reduce Magnetic Distortions
• DD Tooled Neo Magnet Compression Tweeter
• Pure Titanium Diaphragm
• Moisture Resistant Polymer Infused Curvilinear Cone
• CCA Voice Coil Wire for Increased Efficiency
• High Energy Magnets With CnC Machined Plates
• Integrated Tinsel Leads
• Embossed DDesign Magnet Boot and Gasket

Specifications:

• Speaker Size (In): 8
• Tweeter Size (MM): 25
• Watts RMS: 150
• Watts Peak: 300
• Impedance: S4
• VCD (In): 1.5
• Frequency Response (Hz): 100 - 22k

Thiele & Small Parameters:

• Fs (Hz): 78
• Qms: 4.56
• Qes: 0.82
• Qts: 1.69
• Vas (Liters): 20.22
• dBSPL: 96

Measurements:

• Mounting Diameter (In): 7
• Mounting Diameter (MM): 178
• Mounting Depth (In): 3-9/16
• Mounting Depth (MM): 91
