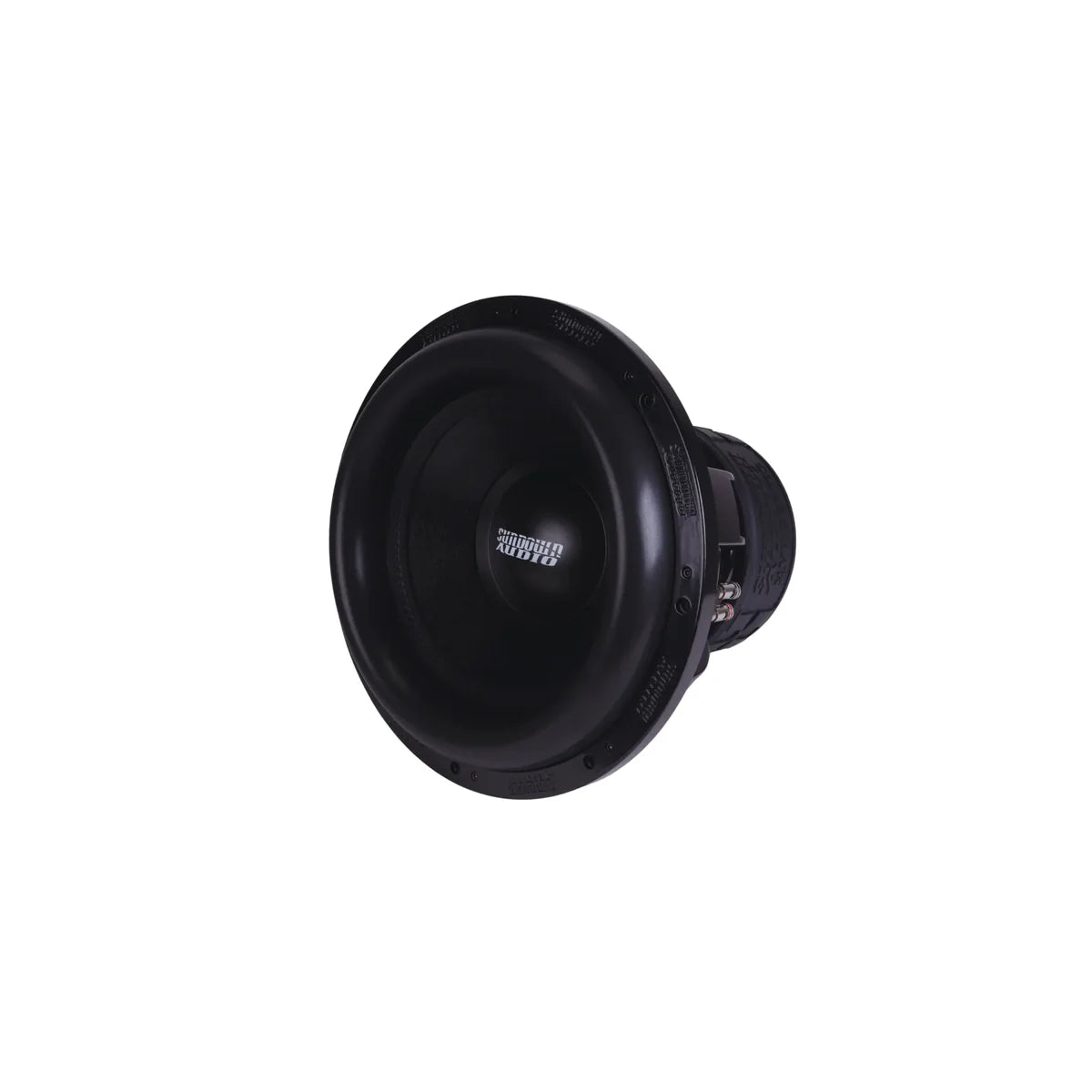

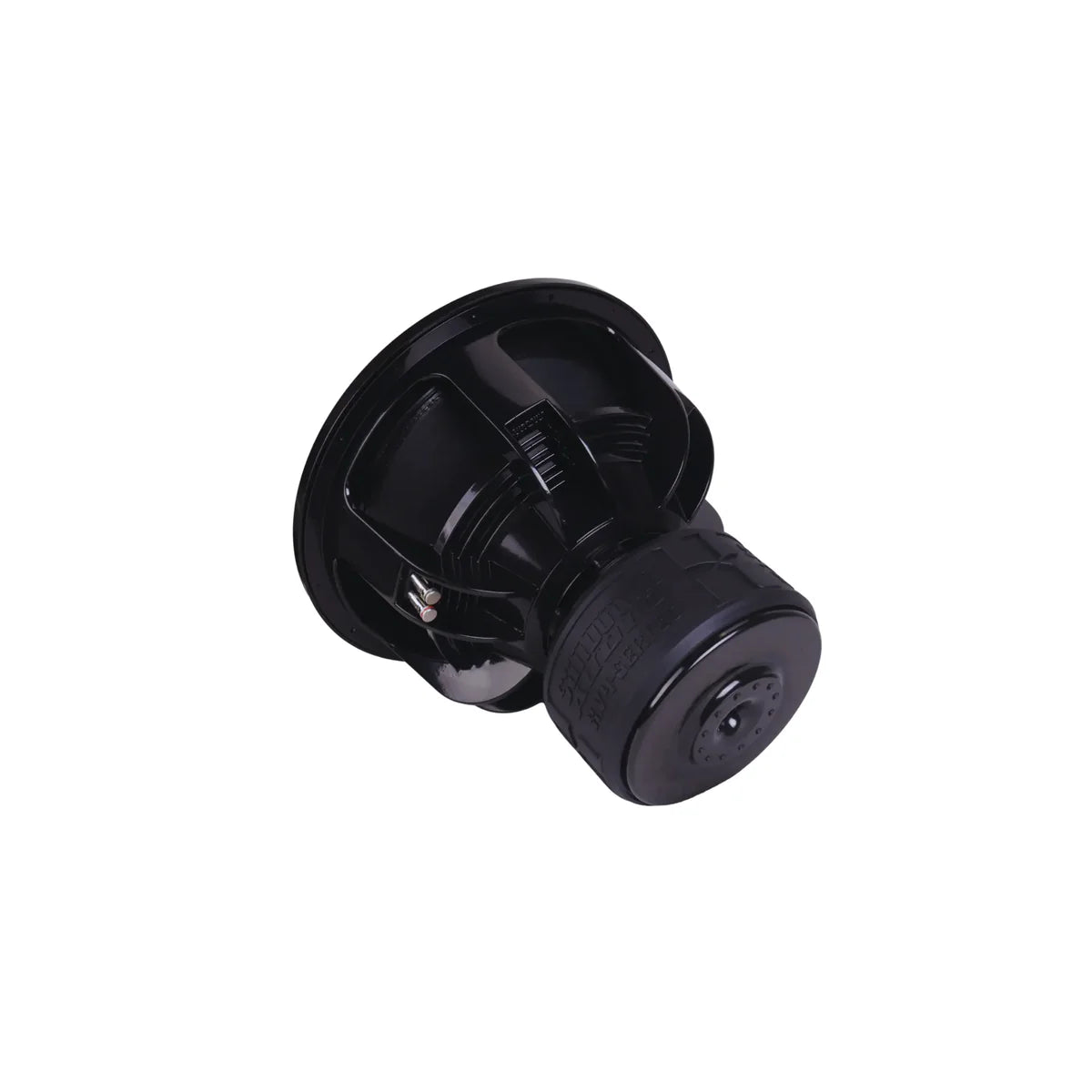

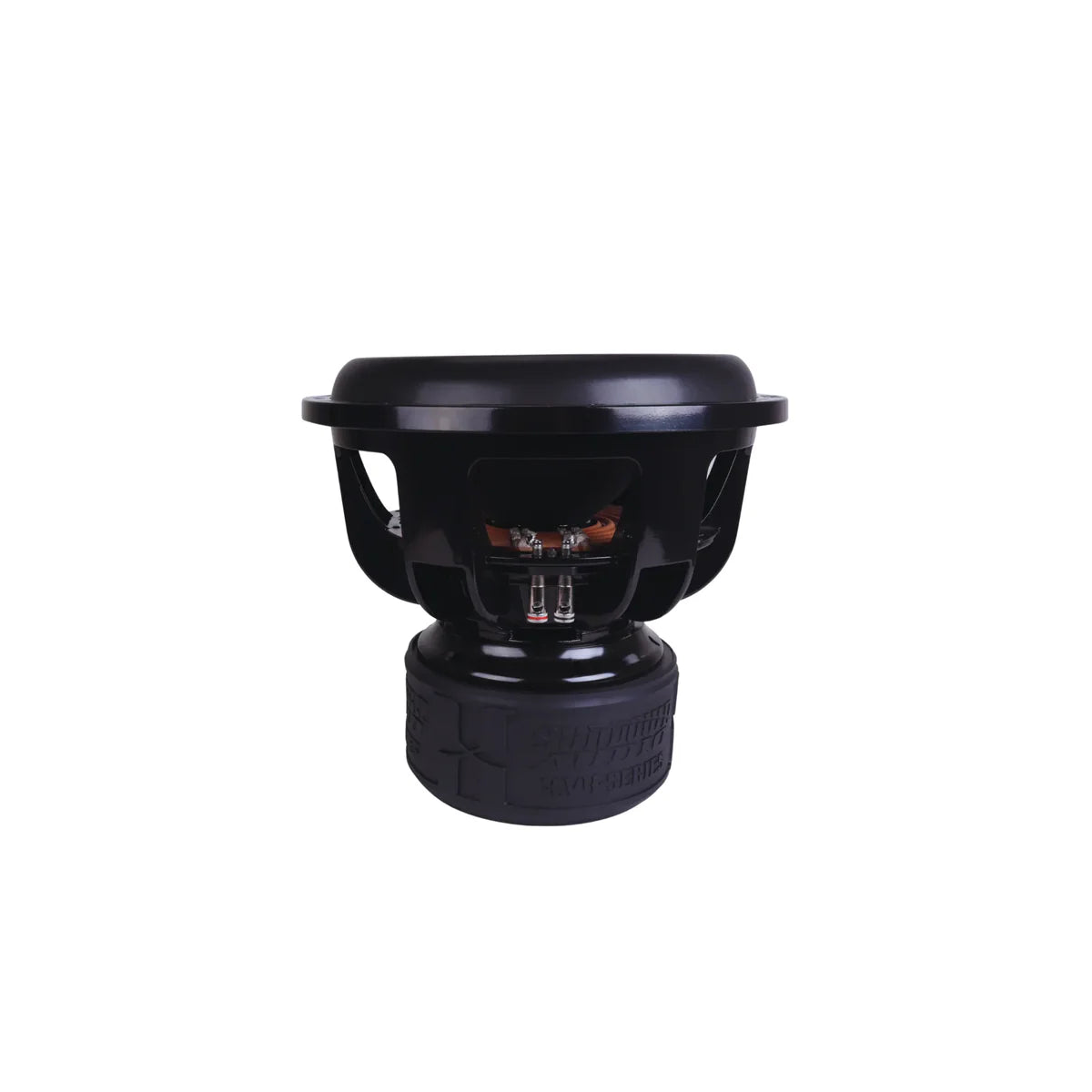

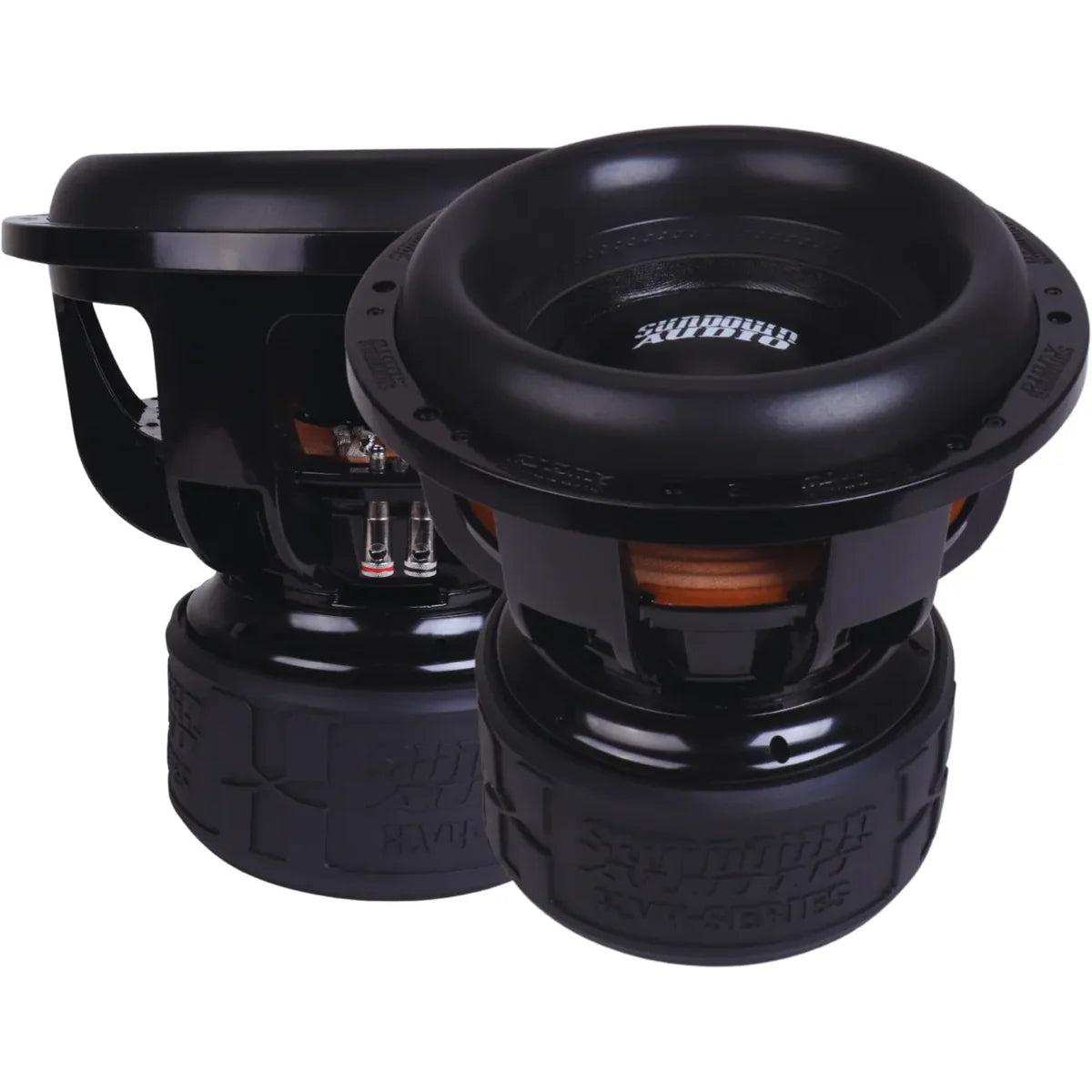

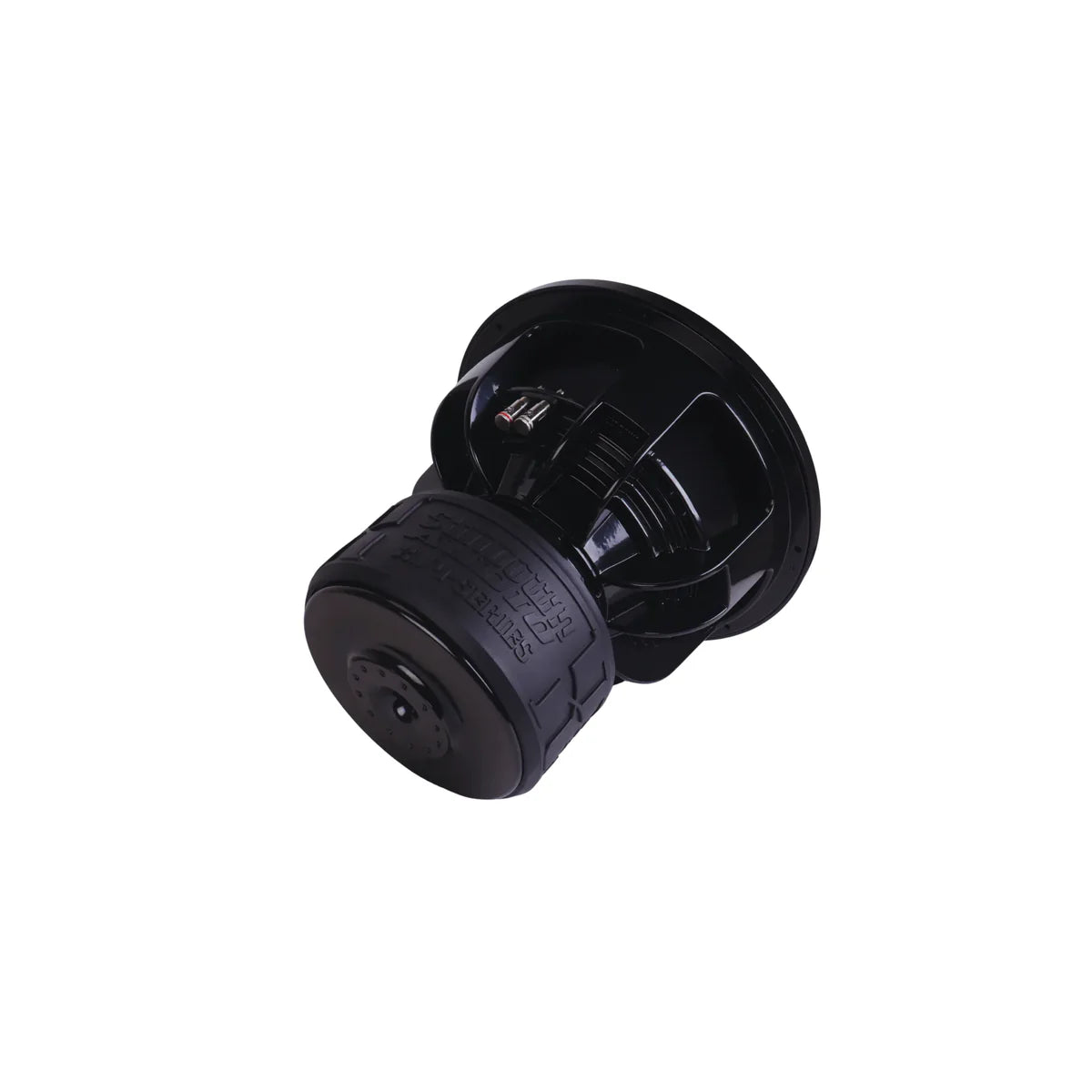

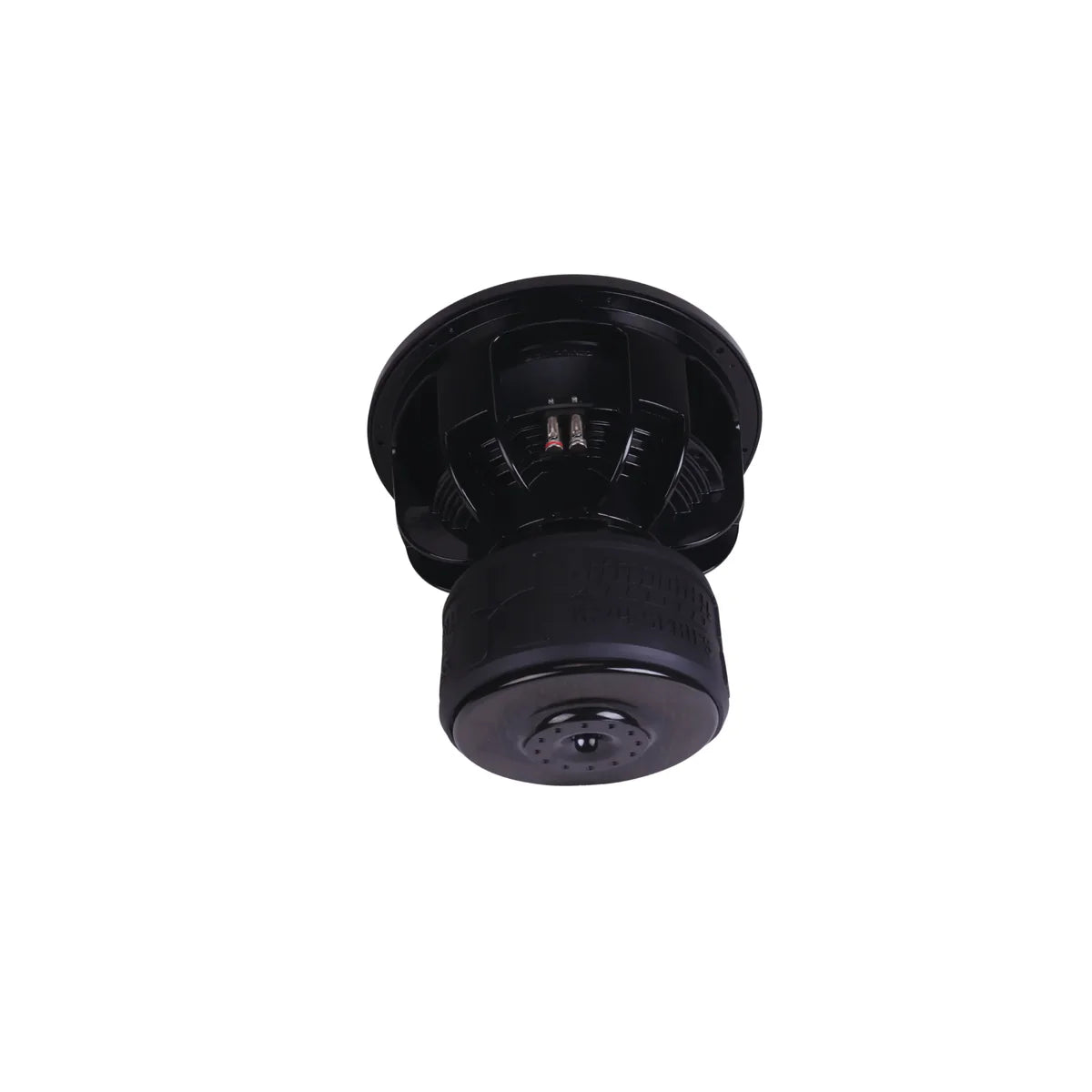

Sundown Audio X15 v.4 15" 3000W RMS Subwoofer DVC

$722.49 In Stock Pre-Order Sold out
Notify when available

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

  • Description
  • Shipping and Refund
  • Reviews

Sundown Audio X15 v.4 15" 3000W RMS Subwoofer DVC

The Sundown Audio XV4 15″ Subwoofer delivers the ultimate low-frequency experience for serious bass lovers. Built with the advanced X v.4 coil design, this subwoofer offers extreme power handling and consistent performance under heavy loads.

With up to 3000W RMS and 6000W peak power, it ensures clean, distortion-free sound even at the highest volumes. The durable motor structure and optimized cone area (72.58 in²) provide deeper lows and better air displacement for maximum sound pressure.

Engineered for flexibility, the XV4 15″ works best in ported enclosures (4.25 cu ft, tuned to 32 Hz) but can also be customized for complex box designs like 4th order setups. Every element — from the high-grade magnet to the precision voice coil — is crafted to deliver unmatched performance and reliability.

Perfect for audiophiles and competitors seeking solid bass impact, this subwoofer combines engineering excellence and raw power in one package.

Key Features

  • 15″ high-performance subwoofer with X v.4 coils

  • 3000W RMS / 6000W peak power handling

  • 30mm Xmax for strong linear excursion

  • Optimized motor design (9.25″ diameter)

  • Recommended ported box: 4.25 cu ft @ 32 Hz

  • Robust cone design for high SPL output

  • Ideal for competitive and high-end car audio systems

Technical Specifications (Metafields Format)

Parameter XV4 15D1 XV4 15D2
RMS Power 3000W 3000W
Peak Power 6000W 6000W
Displacement 0.26 cu.ft. 0.26 cu.ft.
Mounting Depth 12.95″ 12.95″
Outside Diameter 15.51″ 15.51″
Cutout Diameter 13.93″ 13.93″
Motor Diameter 9.25″ 9.25″
Sealed Enclosure Not Recommended Not Recommended
Ported Enclosure 4.25 cu ft 4.25 cu ft
Recommended Port Tuning 32 Hz 32 Hz
Recommended Port Area 68 sq in 68 sq in
4th Order Sealed Side 2.0 cu ft 2.0 cu ft
4th Order Ported Side 6.0 cu ft 6.0 cu ft
4th Order Port Area 120 sq in 120 sq in
4th Order Port Length 8″ 8″
Xmax 30mm 30mm
SD (Cone Area) 72.58 in² 72.58 in²
RE (Ohms) 3.2 3.74
FS (Hz) 29.91 29.51
Qes 0.55 0.49
Qms 4.87 4.08
Qts 0.49 0.44
BL (NA) 22.32 27.44
Mms (g) 457.51 538.24
CMS 61.87 54.02
Sensitivity 85.29 dB 85.1 dB



T/S Specs
RMS Power (D2)
3000
RMS Power (D1)
3000
Peak Power (D1)
6000
Peak Power (D2)
6000
RE D1 (Ohms)
3.2
RE D2 (Ohms)
3.74
FS D1 (Hz)
29.91
FS D2 (Hz)
29.51
VAS D1 (L)
31.43
VAS D2 (L)
40.41
Qes D1
0.55
Qes D2
0.49
Qms D1
4.87
Qms D2
4.08
Qts D1
0.49
Qts D2
0.44
Le D1 (mH)
2.57
BL D1 (NA)
22.32
BL D2 (NA)
27.44
Mms D1 (Grams)
457.51
Mms D2 (Grams)
538.24
Cms D1 (uM/N)
61.87
Cms D2 (uM/N)
54.02
Sens D1 (dB @ 1w/1m)
85.29
Sens D2 (dB @ 1w/1m)
85.1
Xmax D1
30mm
Xmax D2
30mm
Subwoofer Measurements
Displacement (Inches)
0.26cu.ft.
Depth (Inches)
12.95"
Cutout (Inches)
13.93"
Motor Diameter (Inches)
9.25"
Ported Enclosure Specs
Ported Enclosure Size
4.25 cu ft
Recommended Port Area
68 sq in
Recommended Port Tuning
32
4th Order Enclosure Specs
4th Order Sealed Side
2.0cu ft
4th Order Ported Side
6.0cu ft
4th Order Port Area
120sq in
4th Order Port Length
8"
